| Model: | NF107 |
| Category： | Single point load cells |
| Capacity: | 50,100,200,500,1000,2000,5000,10000,20000N |
| Rated Output: | 1.5±20%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
| Weight: | 0.03KG |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

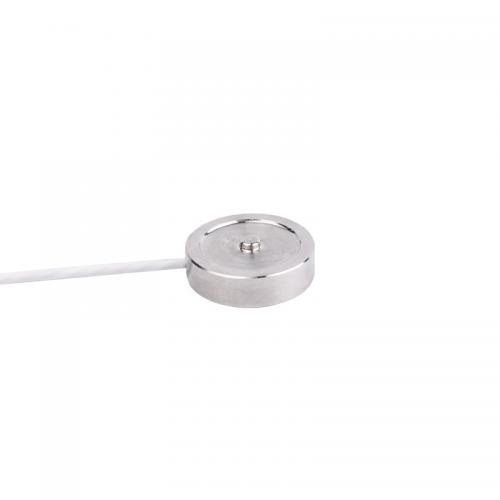

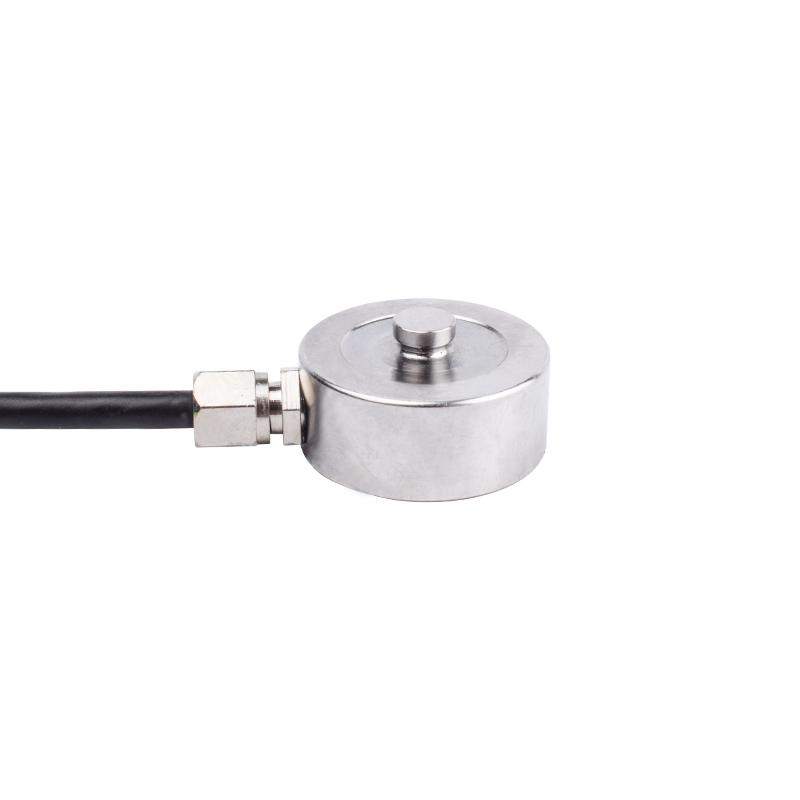

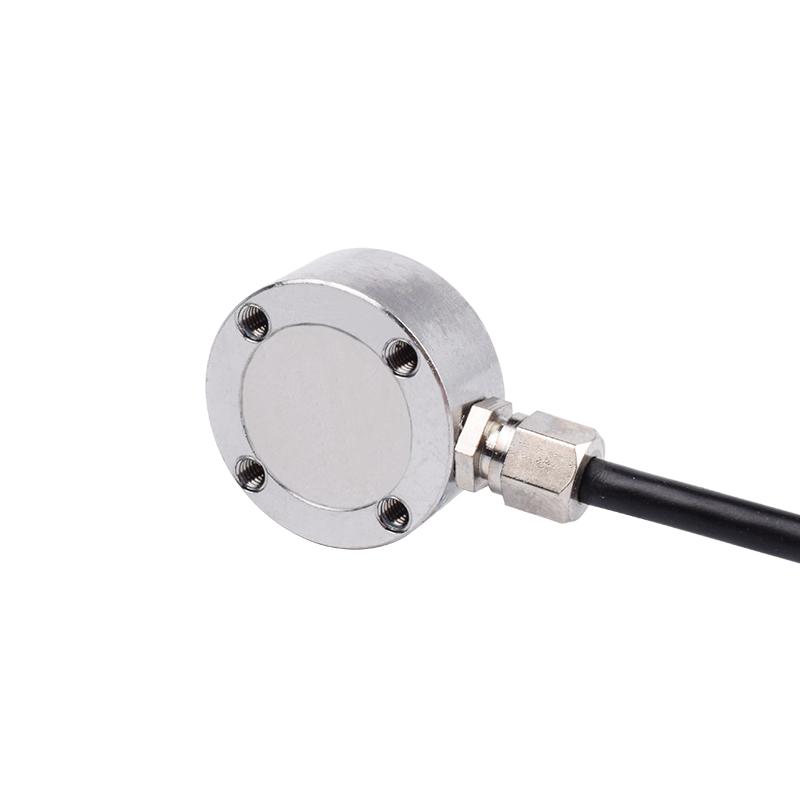

Subminiature load button load cell NF107 is designed for compression. The small force sensor is known for their small package size. The subminiature load cell can be used in very small areas.The Small sensors have many ranges 50,100,200,500,1000,2000,5000,10000,20000N to choose from.
Small deformation
Applications

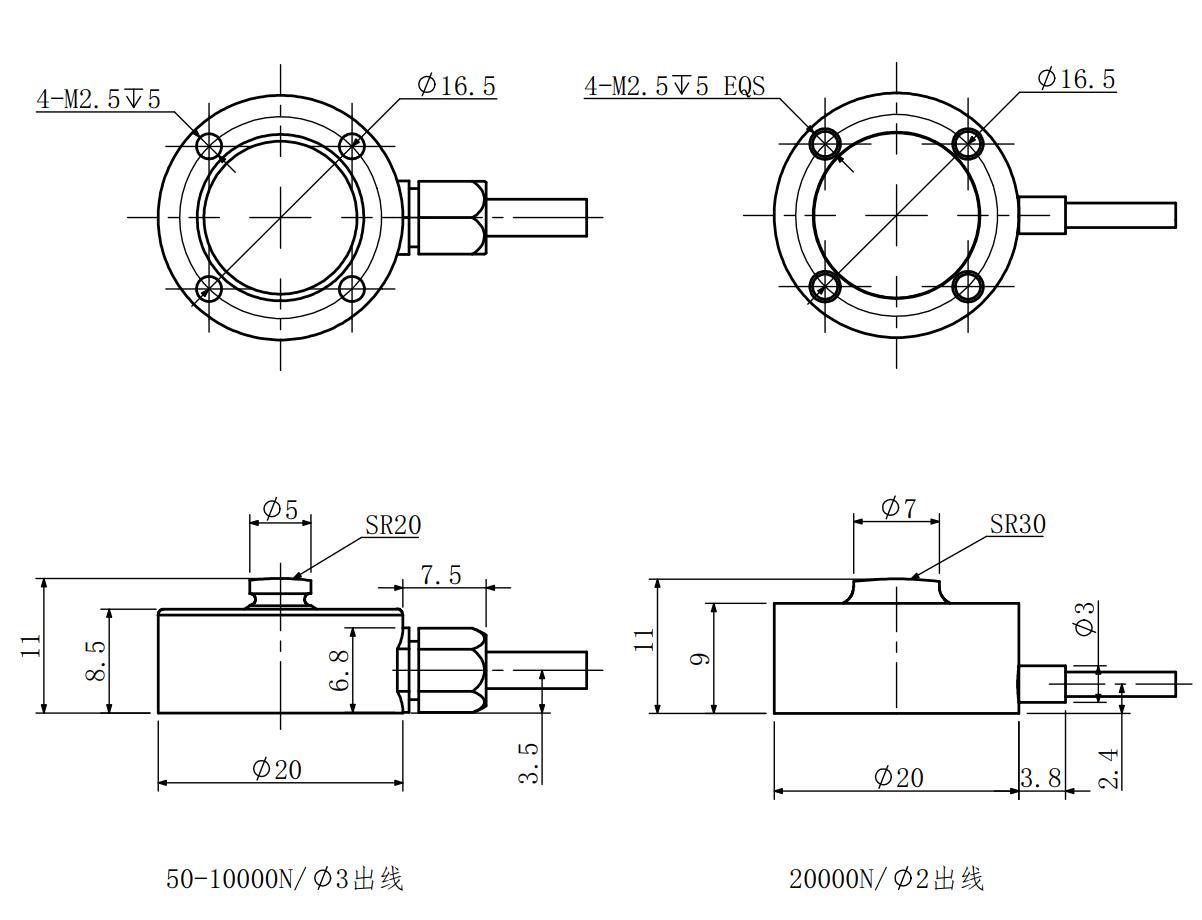

Mounting Dimension

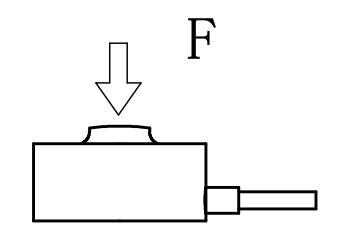

Load Direction

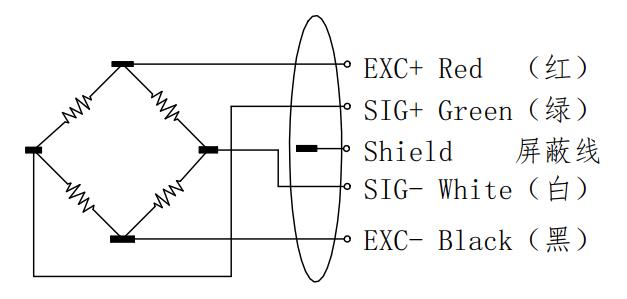

Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 50,100,200,500,1000,2000,5000,10000,20000N |
| Rated output | 1.5±20%mV/V |
| Zero balance | ±2%mV/V |
| Creep（30min） | ≤0.1%F.S. |
| Non-linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Insulation | ≥5000MΩ/100VDC |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | φ2/3X3m |
