| Model: | NF601 |
| Category： | Torque Sensor |
| Capacity: | 1,2,3,5,6,10,20,30,50,100,150N.m |
| Rated Output: | 1.5±10%mV/V |
| Material: | aluminum alloy |
| Protection Class: | IP65 |
| Weight: | 0.2KG |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

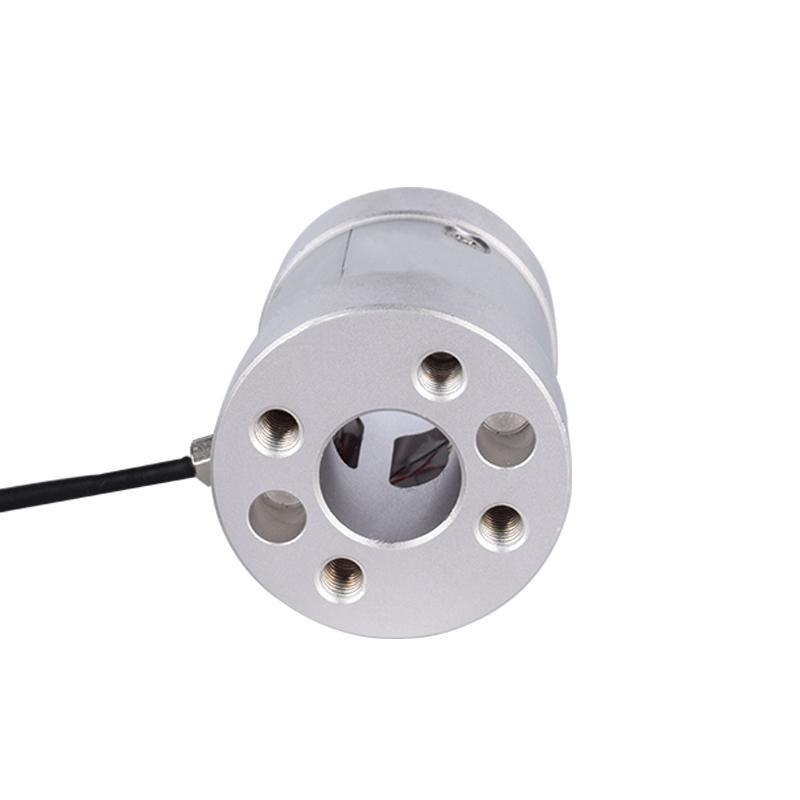

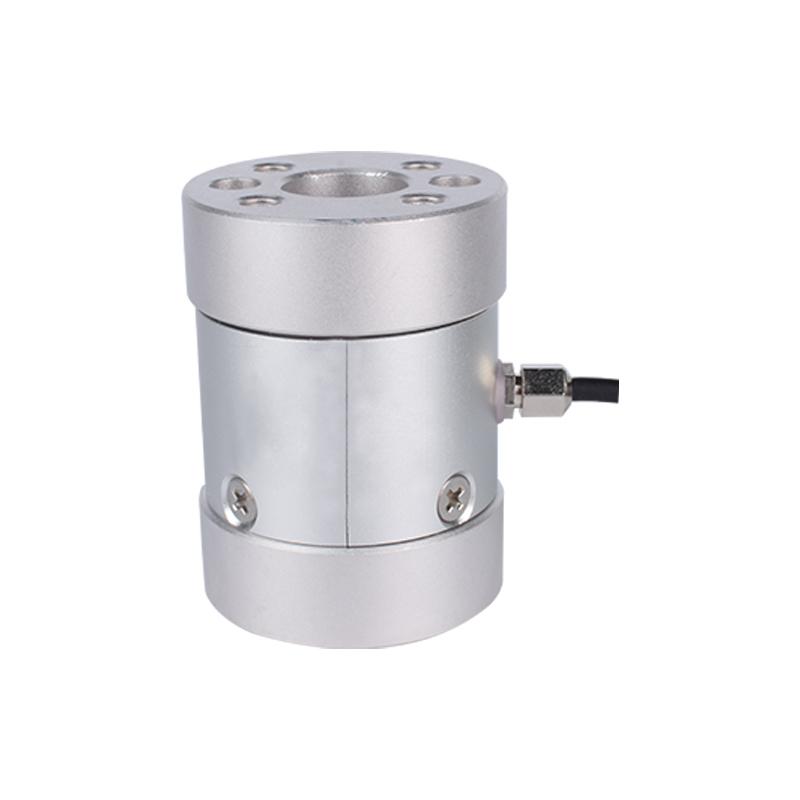

Flange to flange through hole torque sensor NF601 measures torque in both clockwise and counterclockwise direction with mV/V output from the wheatstone bridge. Hollow flange torque transducer measures small-reaction torque levels using flange-to-flange connections in-line with the component under test.
Applications

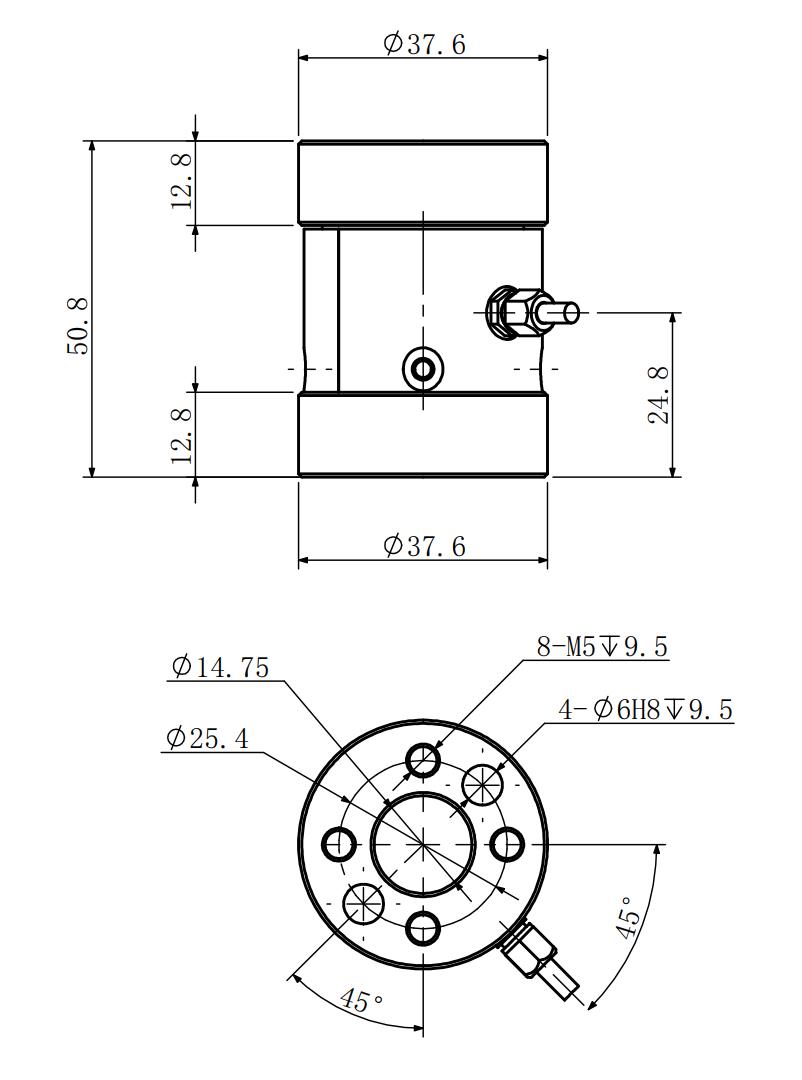

Mounting Dimension

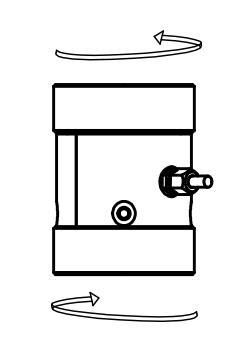

Load Direction

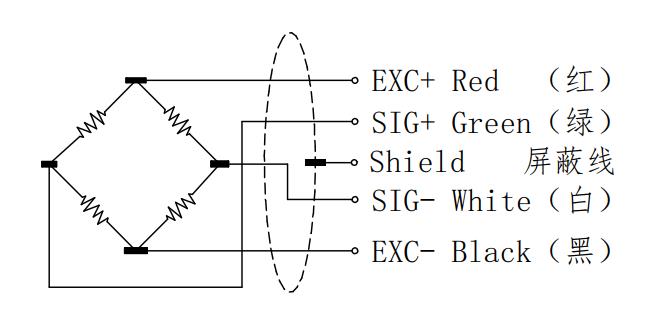

Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 1,2,3,5,6,10,20,30,50,100,150N.m |
| Rated output | 1.5±10%mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.05%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 410±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | φ3×3000mm |
| Material | aluminum alloy |
