| Model: | NF107A |
| Category： | Single point load cells |
| Capacity: | 50,100,200,500,1000N |
| Rated Output: | 1.5±20%mV/V |
| Material: | Stainless steel |
| Protection Class: | ~ |
| Weight: | ~ |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

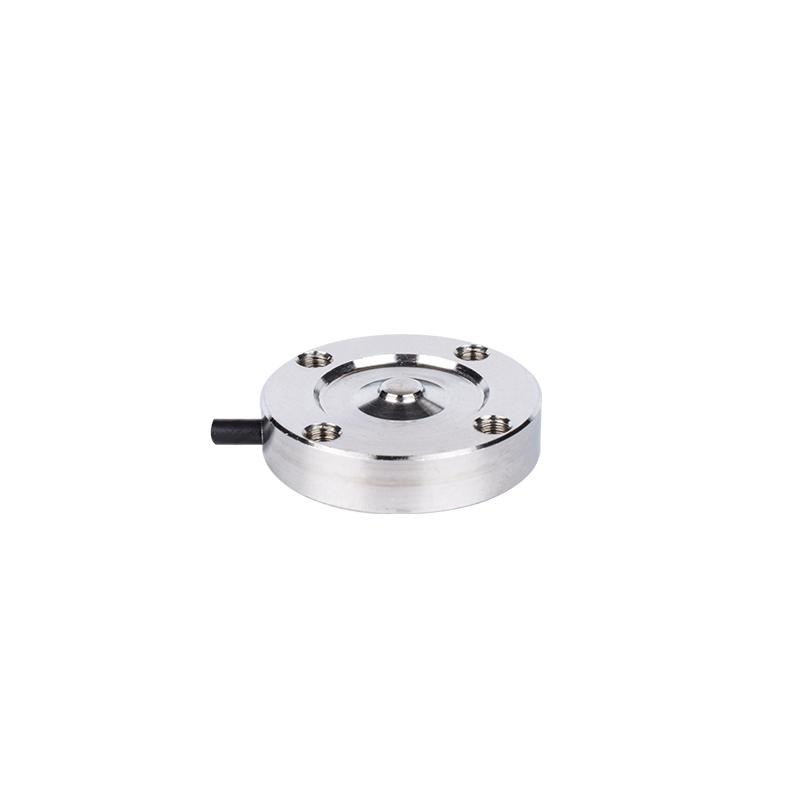

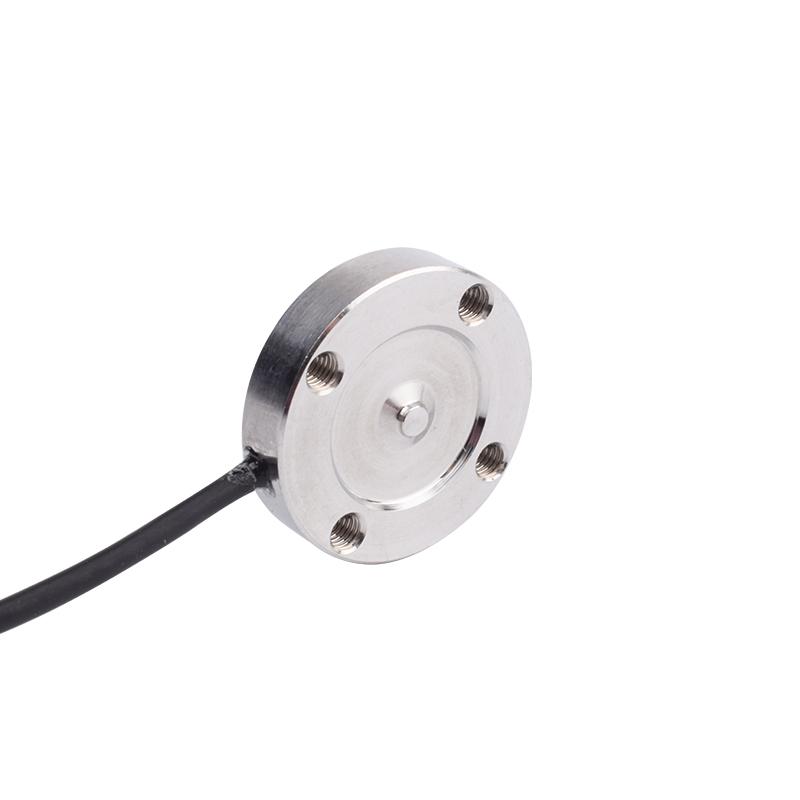

Low capacity high precision micro load cell NF107A has five measuring ranges, respectively 0-50N,0-100N,0-200N,0-500N,0-1000N. The subminiature load cell is used for pressure. The mini transducer can be used in many applications, especially popular for compression force measure where space is limited.
High precision
Applications

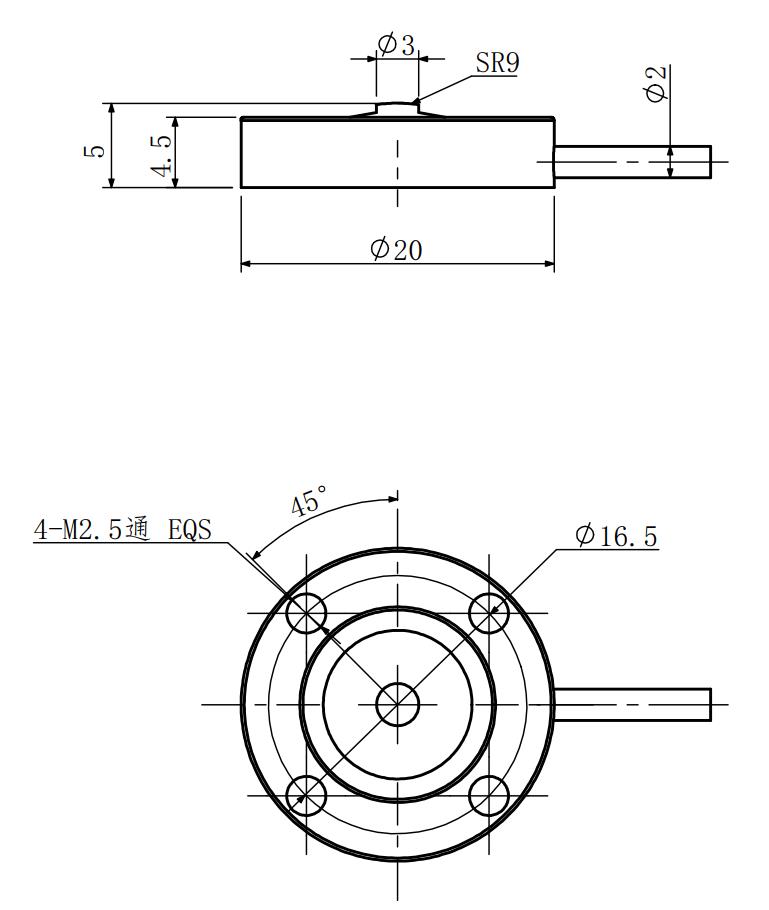

Mounting Dimension

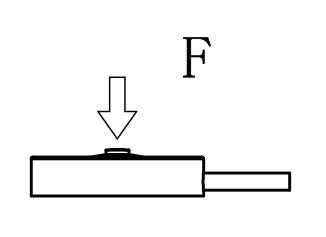

Load Direction

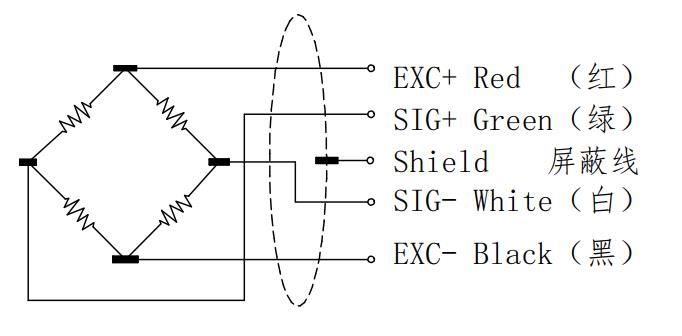

Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 50,100,200,500,1000N |
| Rated output | 1.5±20%mV/V |
| Zero balance | ±0.05 mV/V |
| Non-linearity | 0.50%F.S. |
| Hysteresis | 0.50%F.S. |
| Repeatability | 0.20%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ2×3000mm |
| Material | Stainless Steel |
