| Model: | NF103B |
| Category： | Single point load cells |
| Capacity: | 50,100,200,300,500N |
| Rated Output: | 1.5±15%mV/V |
| Material: | Stainless steel |
| Protection Class: | ~ |
| Weight: | ~ |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

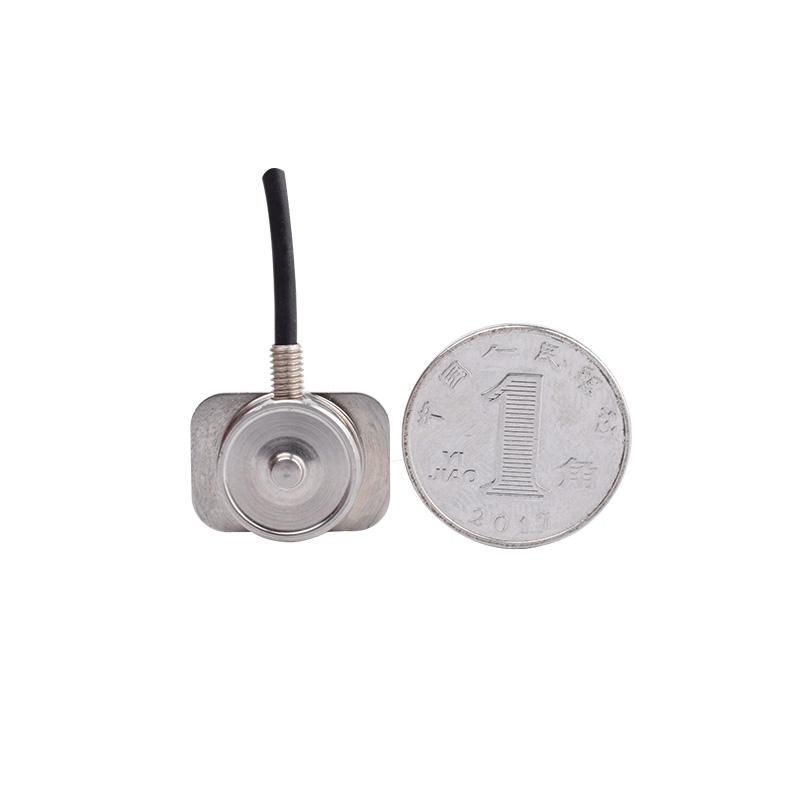

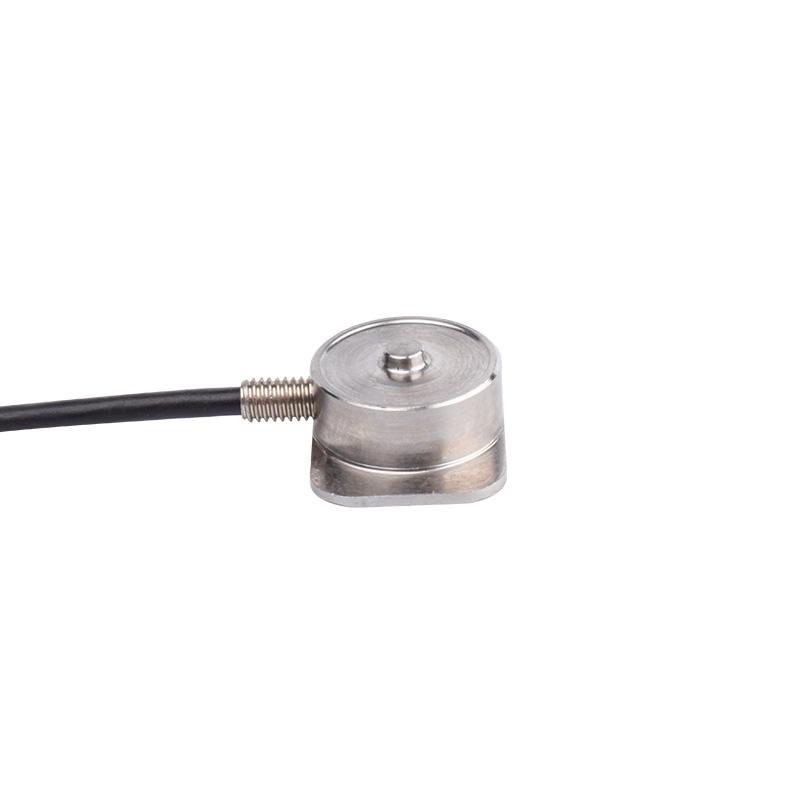

Subminiature pressure load button force sensor NF103B uses the principle of high precision resistance strain gauge. The miniature load cell can meet the force measurement in the range of 50N-500N. The miniature load cell is made of stainless steel. The load button load cell is sealed, welded, oil-resistant, water-resistant, and corrosion-resistant, so this sensor can be used in many applications.
High dynamic response frequency
Applications

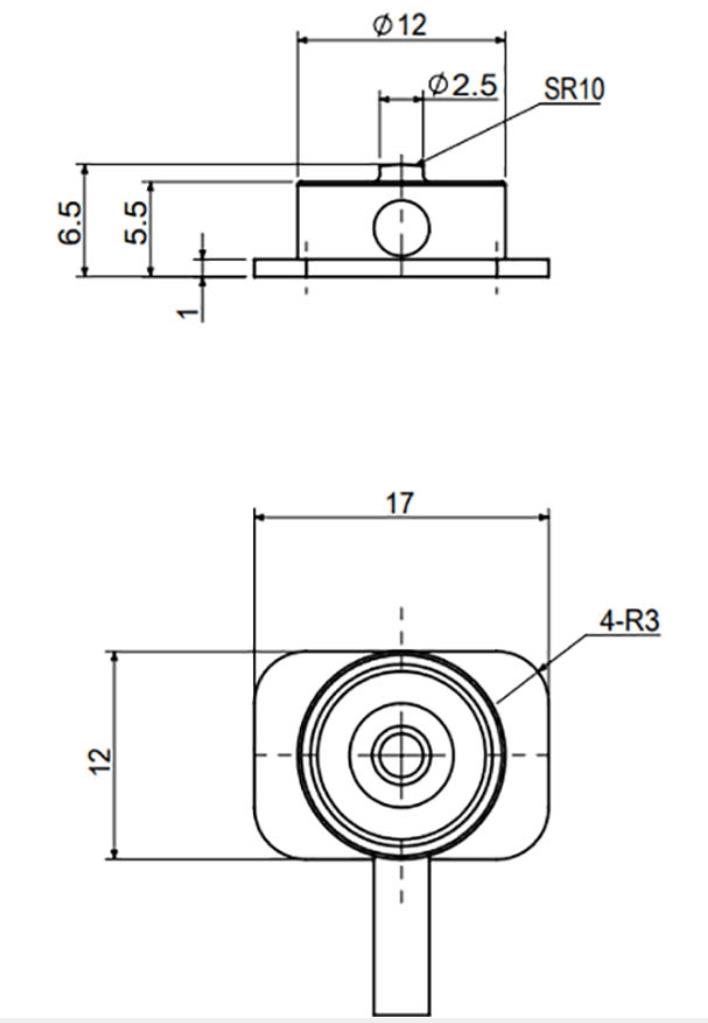

Mounting Dimension

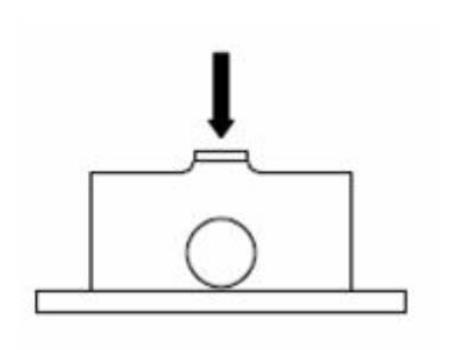

Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 50,100,200,300,500N |
| Rated output | 1.5±15%mV/V |
| Zero balance | ±0.03 mV/V |
| Non-linearity | 0.50%F.S. |
| Hysteresis | 0.20%F.S. |
| Repeatability | 0.20%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 10V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 120%F.S. |
| Ultimate overload | 150%F.S. |
| Cable size | Φ2×3000mm |
| Material | Stainless Steel |
