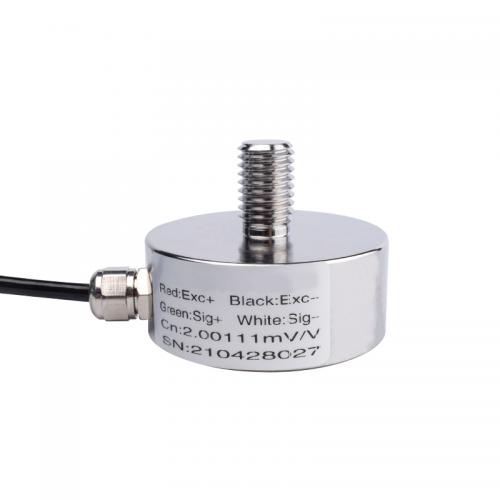

| Model: | NF103 |
| Category： | Single point load cells |
| Capacity: | 100,200,500N |
| Rated Output: | 1.5±15%mV/V |
| Material: | Stainless steel |
| Protection Class: | ~ |
| Weight: | ~ |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

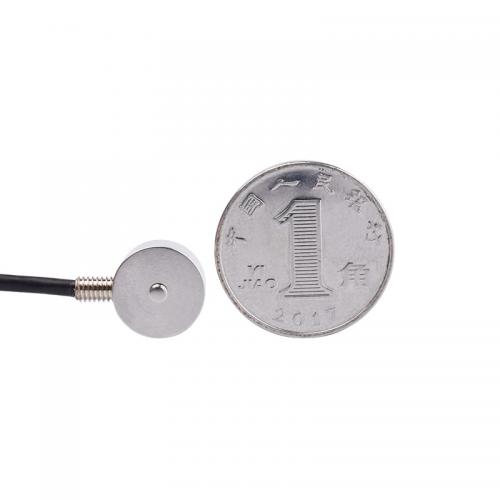

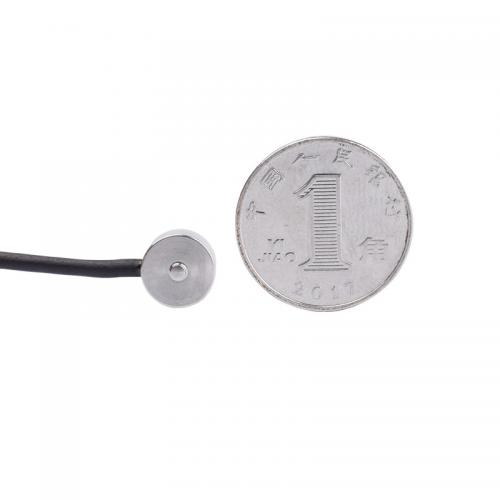

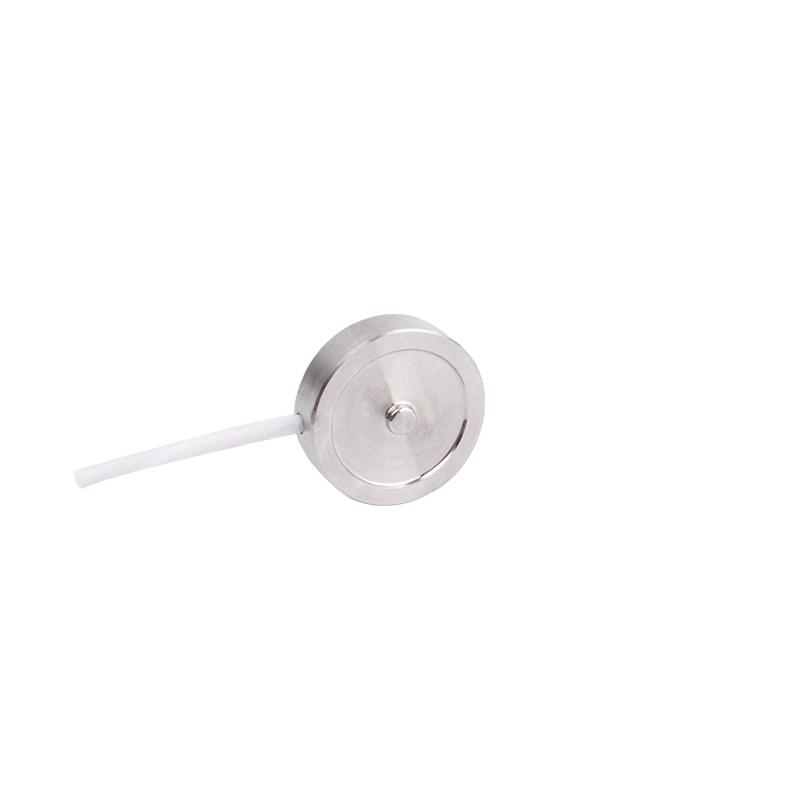

Micro load button compression load cell NF103 is used for pressure. The subminiature load cell is small in size and can be used in many limited spaces. The mini transducer offers 0-100N,0-200N,0-500N three different measuring ranges to choose from. Because of these advantages, the micro load button can offer limitless possibilities for applications.
Applications

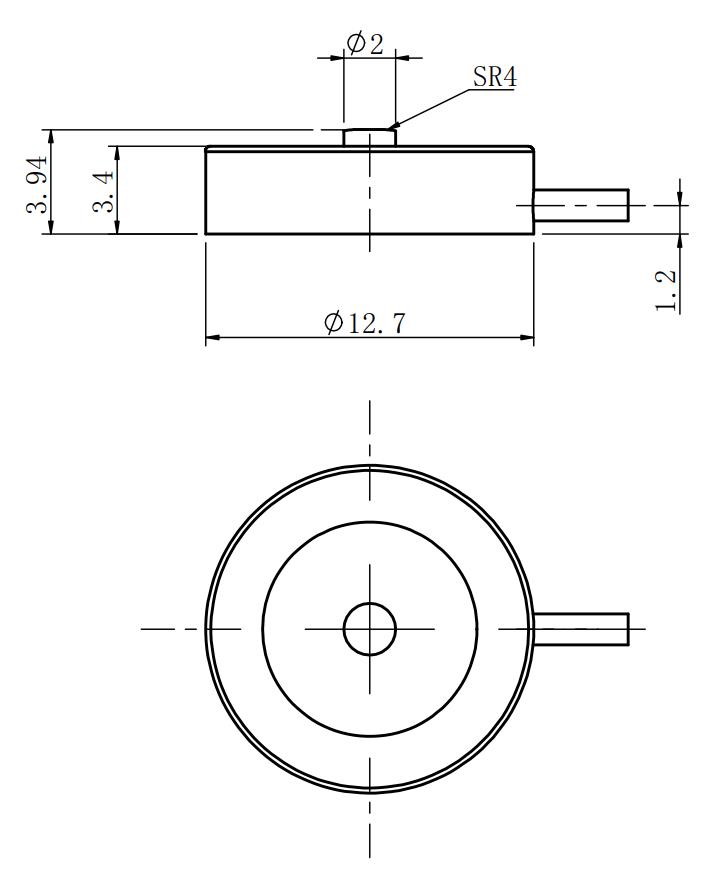

Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 100,200,500N |
| Rated output | 1.5±15%mV/V |
| Zero balance | ±0.05 mV/V |
| Non-linearity | 0.50%F.S. |
| Hysteresis | 0.20%F.S. |
| Repeatability | 0.20%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 800~1000Ω |
| Output impedance | 800~1000Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ1.2×3000mm |
| Material | Stainless Steel |
