| Model: | NF502 |
| Category： | Beam Load Cells |
| Capacity: | 200,300,600g;1,1.5,3 kg |
| Rated Output: | 0.8~1.0mV/V(200g,300g); 2.0 mV/V(600g;1,1.5,3 kg) |
| Material: | Aluminum alloy |
| Protection Class: | IP65 |
| Weight: | 0.1KG |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

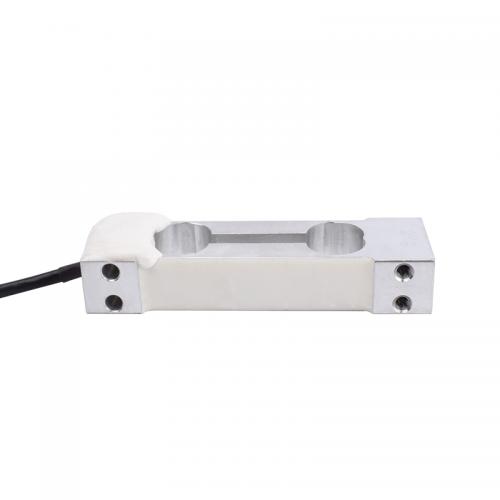

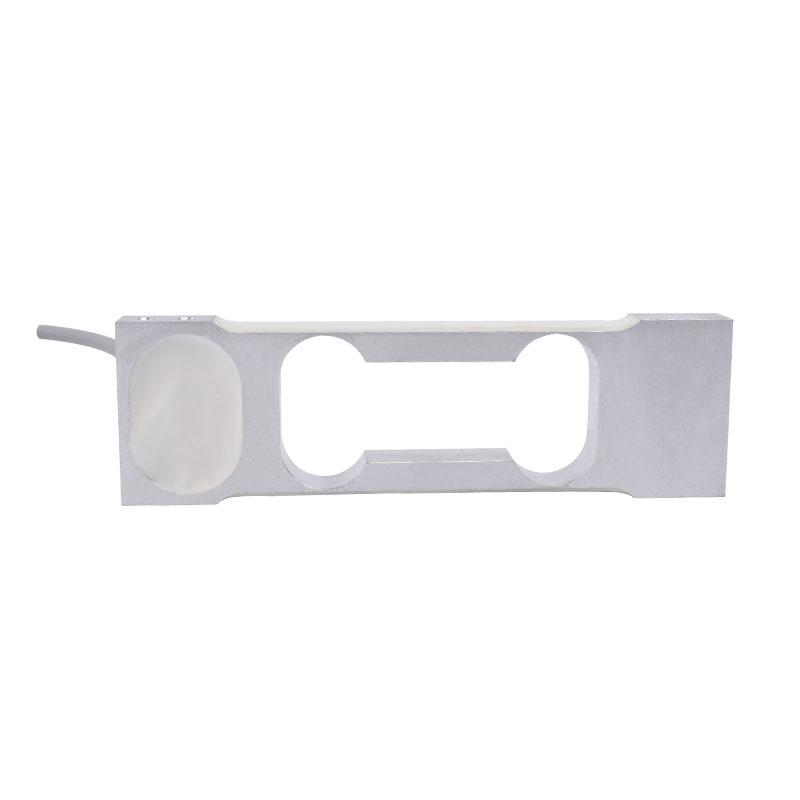

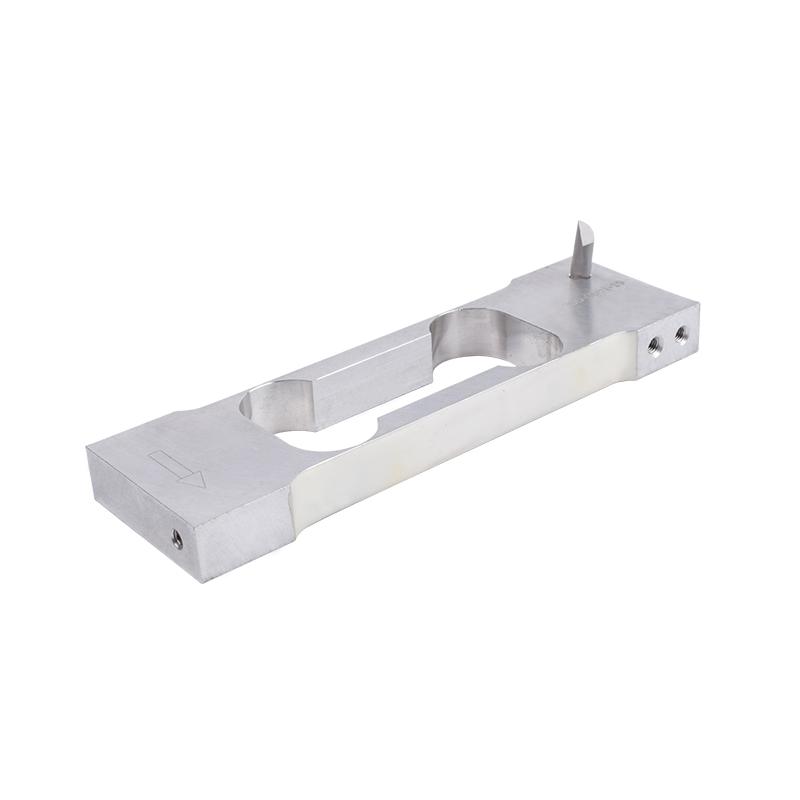

Cantilever bending beam weighing sensor NF502 is made of aluminum alloy. The bending beam load cell is based on strain gauge technology. The weighing sensor has different rated output sensitivity for different ranges. The shear beam load cell is available in six different ranges from 200g to 3kg.
Applications

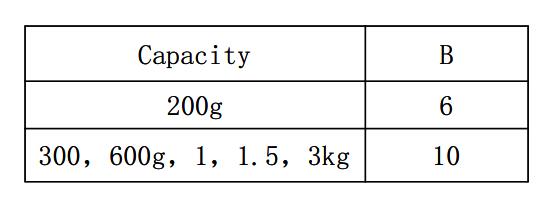

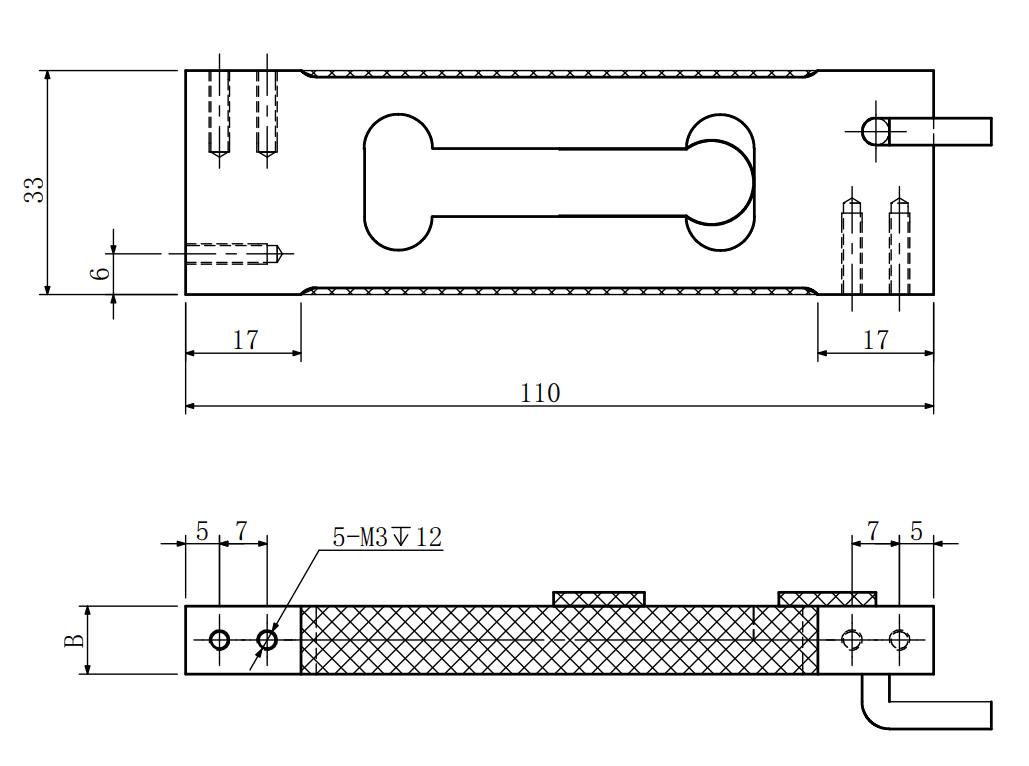

Mounting Dimension

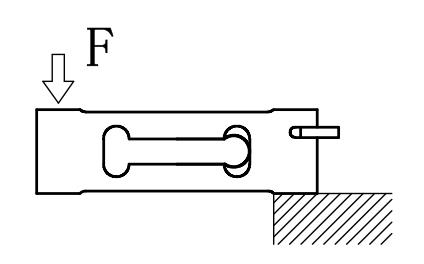

Load Direction

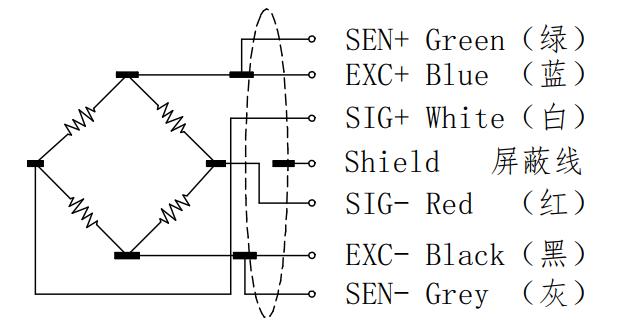

Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 200,300,600g;1,1.5,3 kg |
| Accuracy class | C3 |
| Rated output | 0.8~1.0mV/V(200g,300g);2.0 mV/V(600g;1,1.5,3 kg) |
| Zero balance | ±0.05 mV/V |
| Non-linearity | 0.015%F.S. |
| Hysteresis | 0.015%F.S. |
| Repeatability | 0.015%F.S. |
| Creep(30min) | 0.0166%F.S. |
| Temp.effect on output | 0.02%F.S./10℃ |
| Temp.effect on zero | 0.03%F.S./10℃ |
| Input impedance | 405±5Ω |
| Output impedance | 350±3Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~40℃ |
| Operation temp range | -10~50℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | Φ4×350mm |
| Material | aluminum alloy |
| IP Class | IP65 |
| Max.platform size | 100mm×100mm |
Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
