| Model: | NF509 |
| Category： | Beam Load Cells |
| Capacity: | 0.22,0.55,1.1,1.76,2.2,4.4t |
| Rated Output: | 1.94±0.1%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP68 |
| Weight: | ~ |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

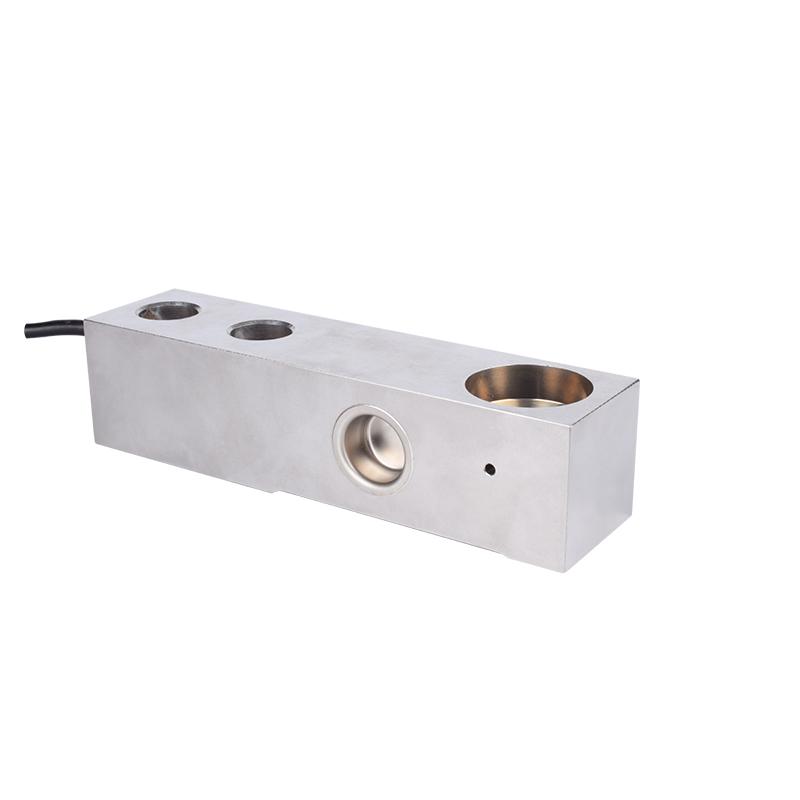

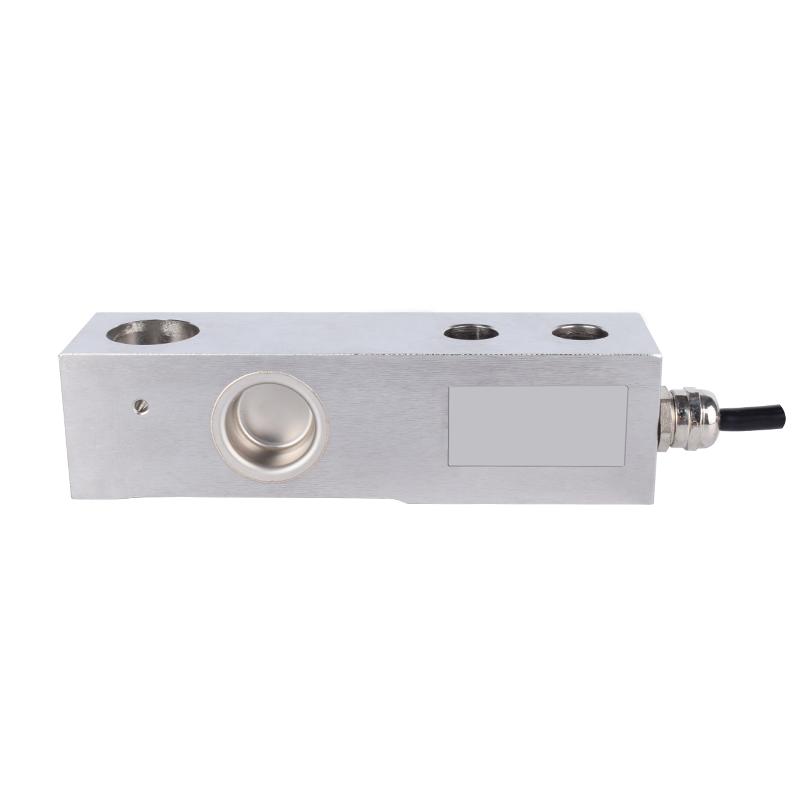

Shear beam weighing load cell NF509 offers limitless possibilities for applications. The off-center weight sensor is available in six different ranges:0-0.22t,0-0.55t,0-1.1t,0-1.76t,0-2.2t,0-4.4t. The weighing sensor is waterproof to an IP68 rating,so it can be applied to a variety of environments.
Applications

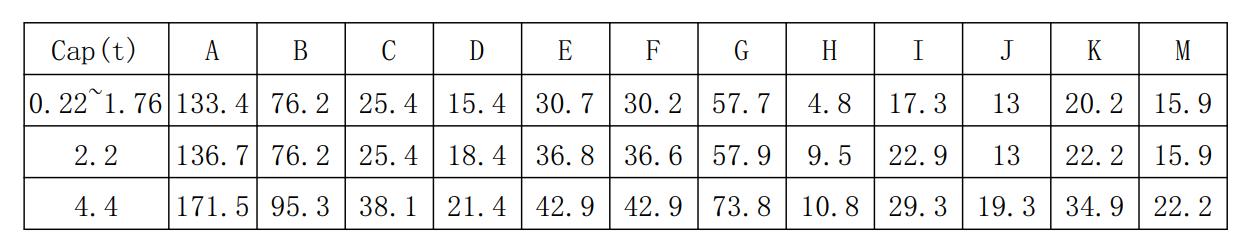

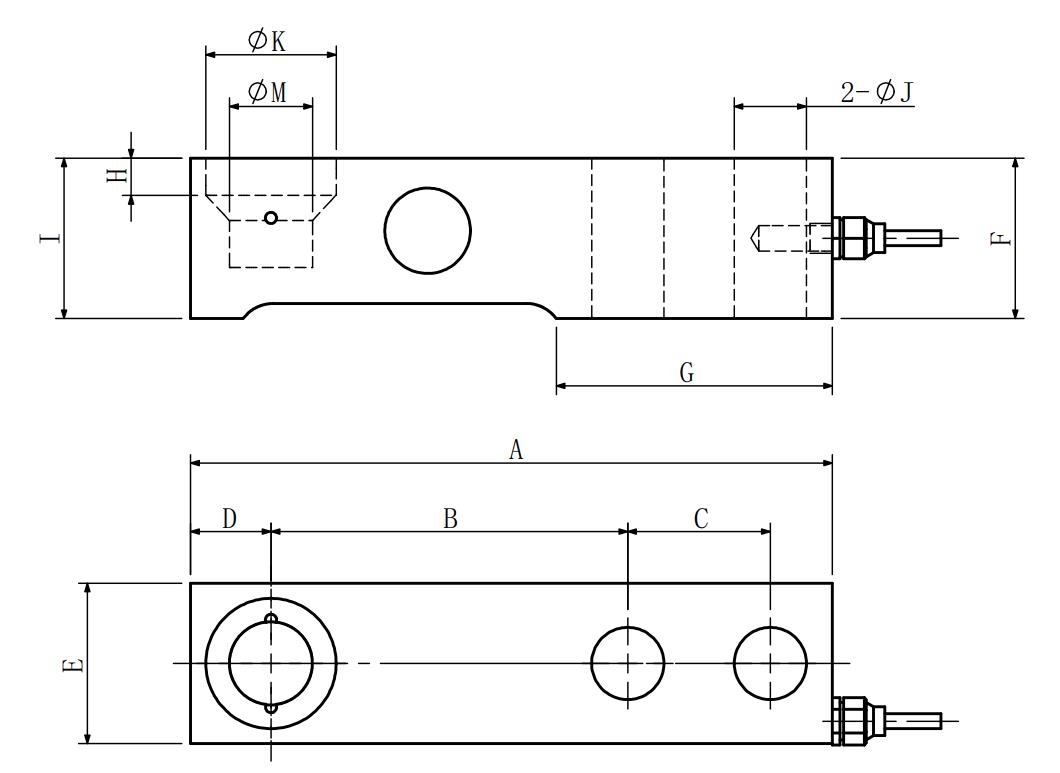

Mounting Dimension

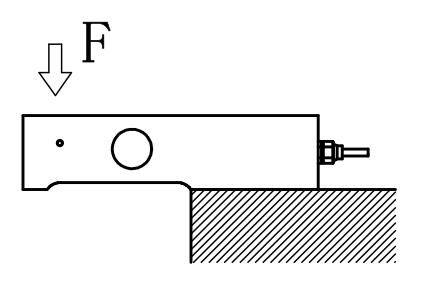

Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 0.22,0.55,1.1,1.76,2.2,4.4t |
| Rated output | 1.94±0.1%mV/V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.017%F.S. |
| Hysteresis | 0.017%F.S. |
| Repeatability | 0.017%F.S. |
| Creep(30min) | 0.0166%F.S. |
| Temp.effect on output | 0.0175%F.S./10℃ |
| Temp.effect on zero | 0.0125%F.S./10℃ |
| Input impedance | 390±3Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~40℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ5.4×1500mm |
| Material | Stainless Steel |
| IP Class | IP68 |
