| Model: | NF307 |
| Capacity: | 25,50,100,200,250,500kg/0.75,1,1.5,2,2.5,5,10t |
| Rated Output: | 2.0±1%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
| Weight: | ~ |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

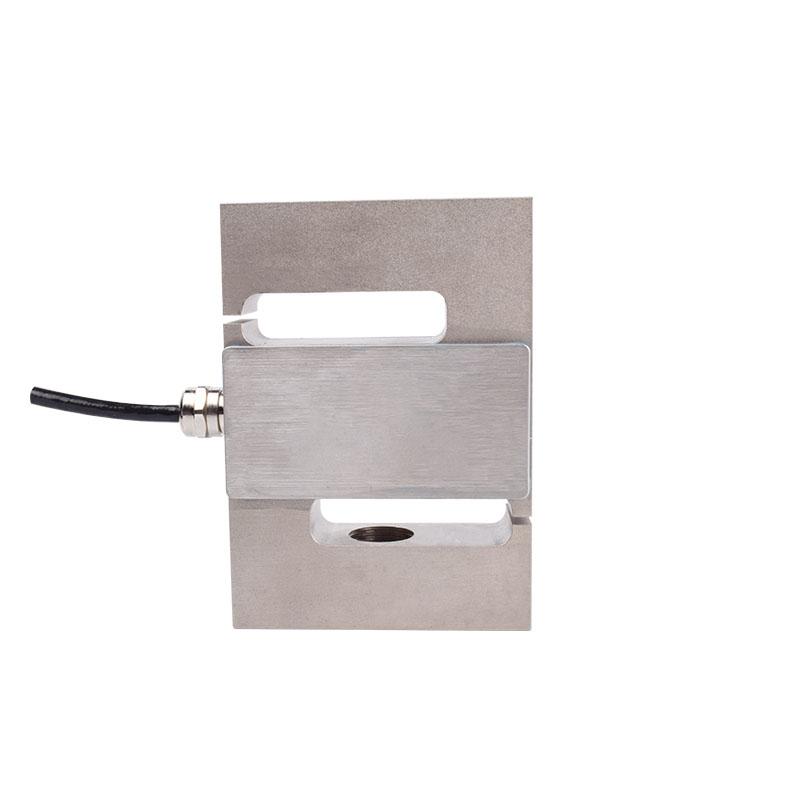

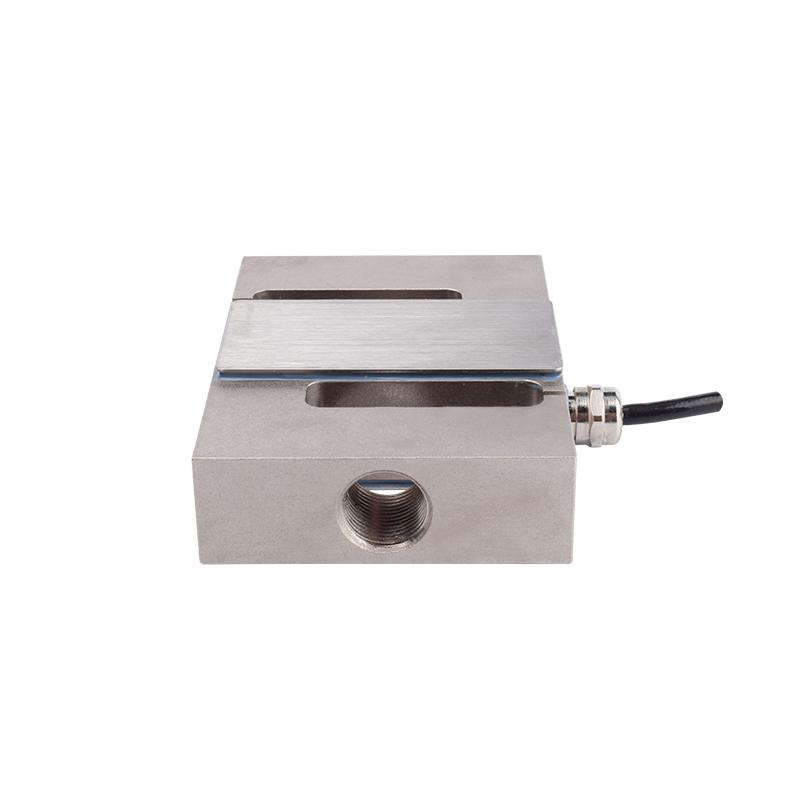

The big range S shaped force transducer NF307 measures tensile and compressive forces and can measure ranges up to 10t.
Applications

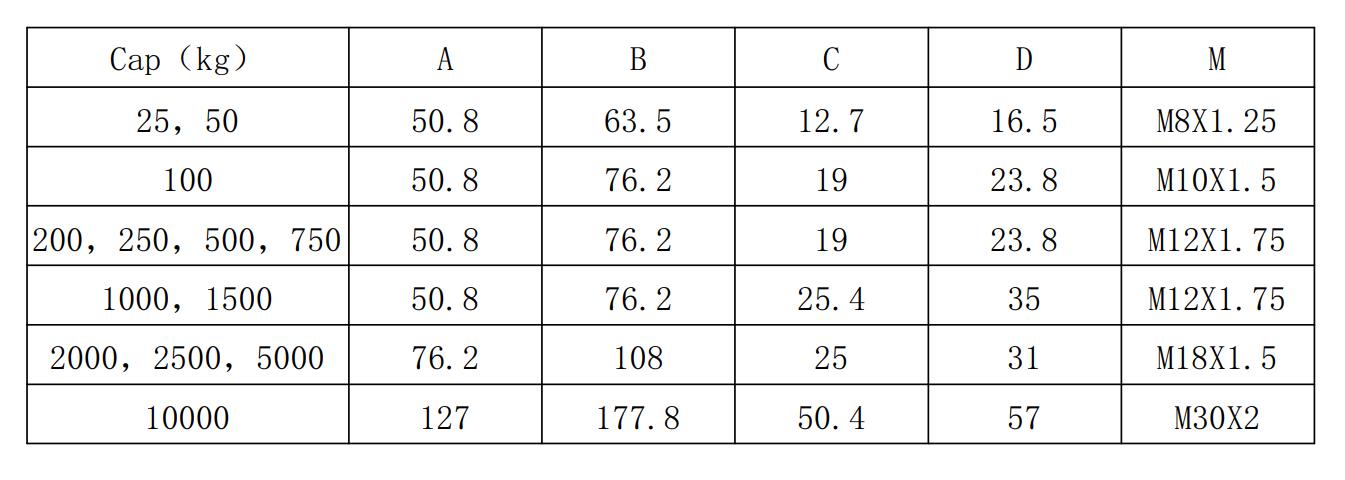

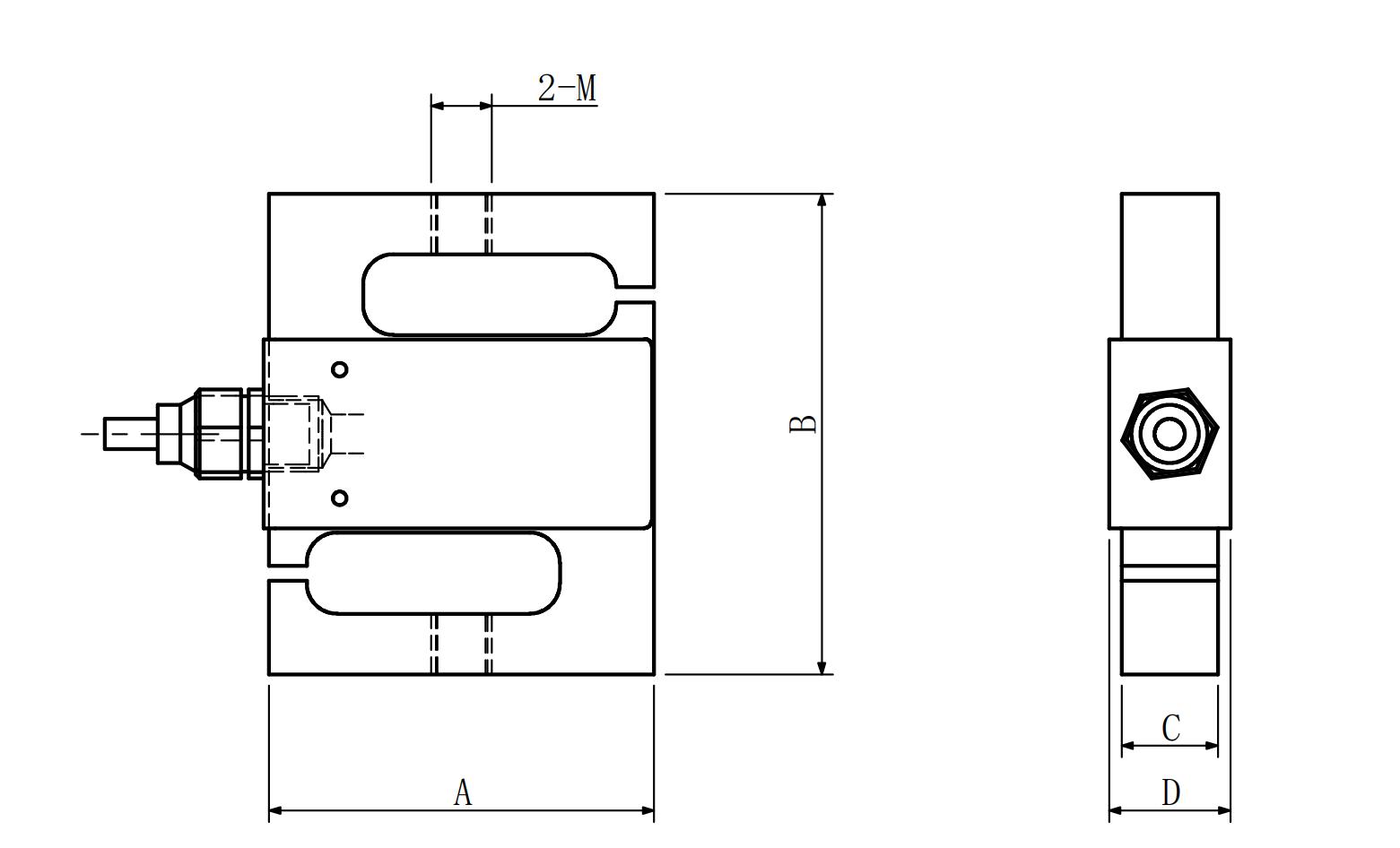

Mounting Dimension

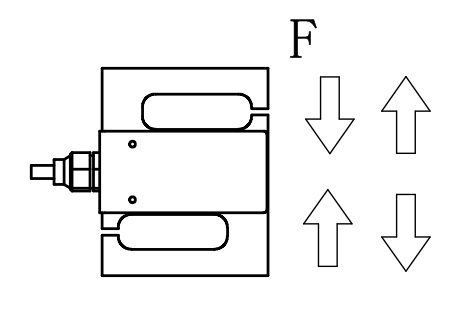

Load Direction

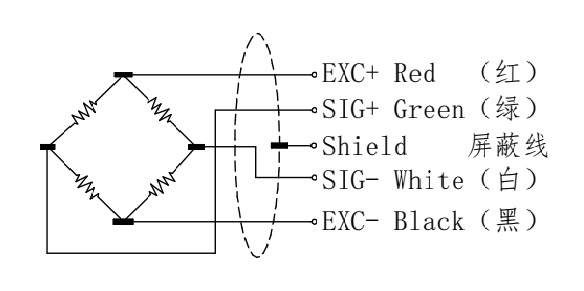

Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 25,50,100,200,250,500kg/0.75,1,1.5,2,2.5,5,10t |
| Reted output | 2.0±1%mV/V |
| Zero Balance | ±0.02mV/V |
| Creep（30min） | ≤0.024%F.S. |
| Non-linearity | ≤0.03%F.S. |
| Hysteresis | ≤0.03%F.S. |
| Repeatability | ≤0.03%F.S. |
| Input impedance | 385±10Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.03%F.S./10 C |
| Temp.effect on zero | 0.03%F.S./10 C |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 C |
| Operating Temp Range | -30~70 C |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
