| Model: | NF507 |
| Category： | Beam Load Cells |
| Capacity: | 100,200g |
| Rated Output: | 0.9±0.1mV/V |
| Material: | Aluminum alloy |
| Protection Class: | IP65 |
| Weight: | 0.1KG |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

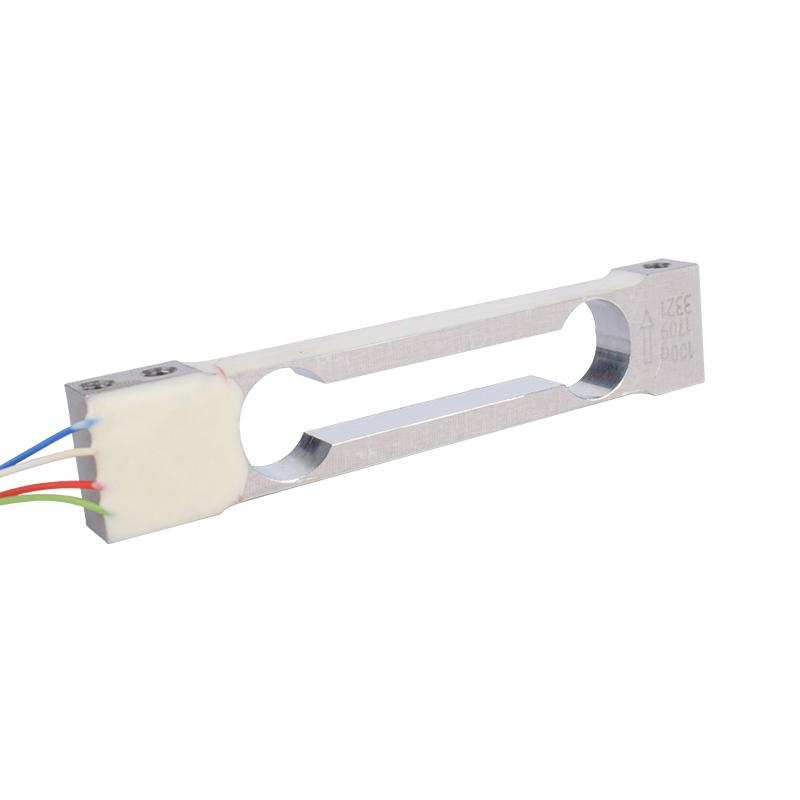

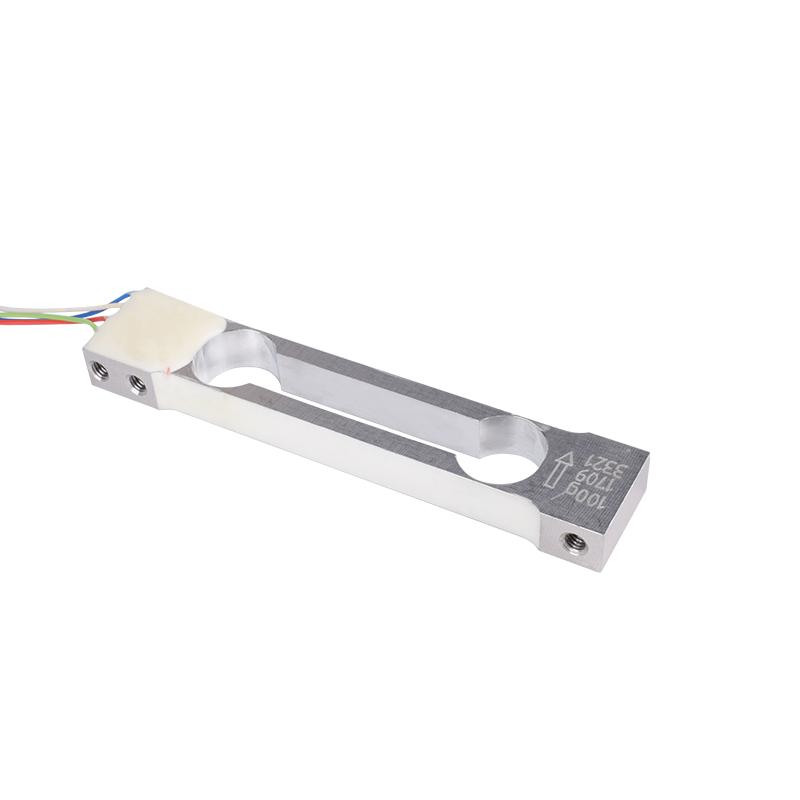

Miniature beam load cell 100g 200g NF507 is made of aluminum alloy based on strain gauge technology. Due to its small size and light weight, this shear beam load cell can be used in limited spaces and light weight weighing instruments. The weighing load cell satisfies the requirements of protection class IP65.
Applications
Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 100,200g |
| Accuracy class | C3 |
| Rated output | 0.9±0.1mV/V |
| Zero balance | ±0.05 mV/V |
| Non-linearity | 0.015%F.S. |
| Hysteresis | 0.015%F.S. |
| Repeatability | 0.015%F.S. |
| Creep(30min) | 0.0166%F.S. |
| Temp.effect on output | 0.02%F.S./10℃ |
| Temp.effect on zero | 0.03%F.S./10℃ |
| Input impedance | 405±20Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~40℃ |
| Operation temp range | -10~50℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | 4-Φ1×100mm |
| Material | aluminum alloy |
| IP Class | IP65 |
| Max.platform size | 50mm×50mm |
