| Model: | NF203 |
| Category： | Tension/Compression Load Cells |
| Capacity: | 50,100,200,300,500,1000,2000,5000N |
| Rated Output: | 2.0±10%mV/V |
| Material: | Stainless steel |
| Protection Class: | ~ |
| Weight: | ~ |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

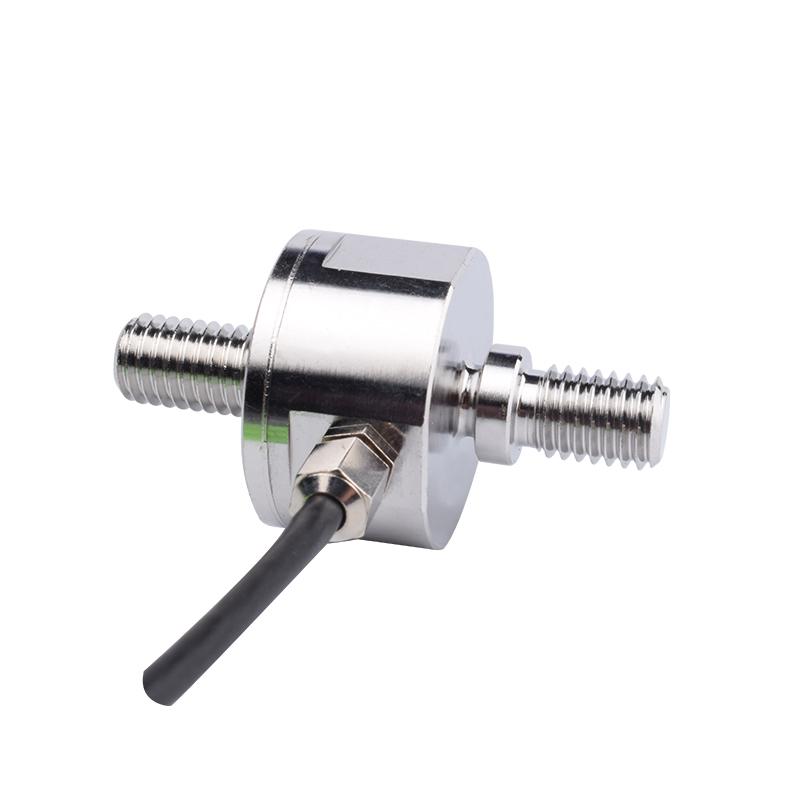

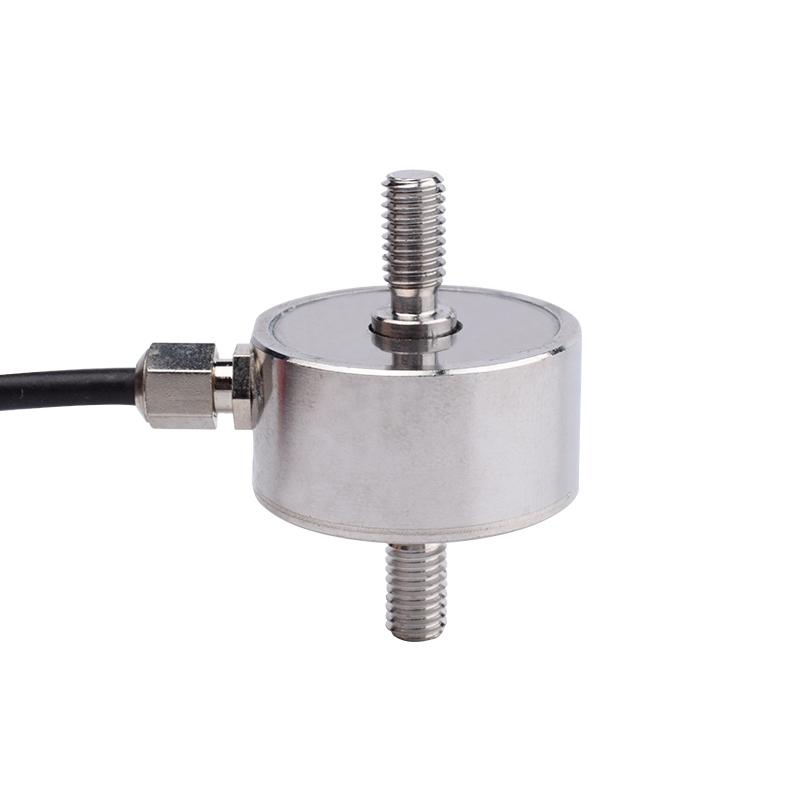

Tension and compression stainless steel load cell NF203 is available in various capacities ranging from 50N,100N,200N,300N,500N,1000N,2000N up to 5000N. The Pull pressure force transducer sensor has different sizes for different ranges. The tension pressure sensor is made of stainless steel utilizing strain gauge technology.
Applications

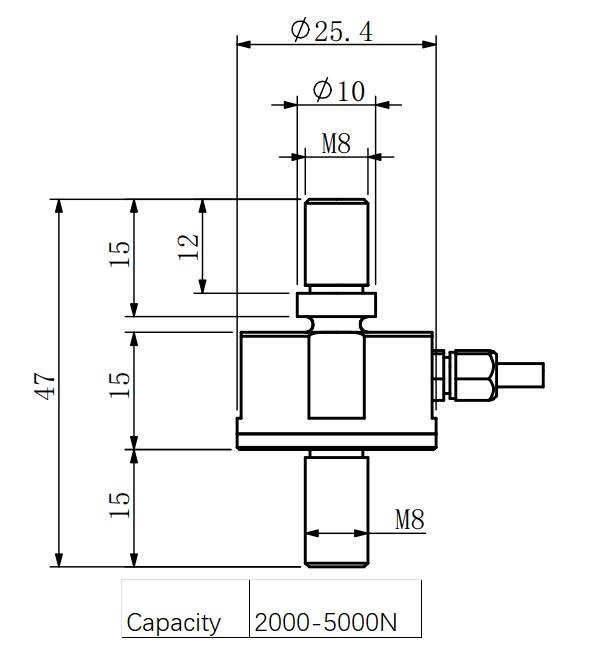

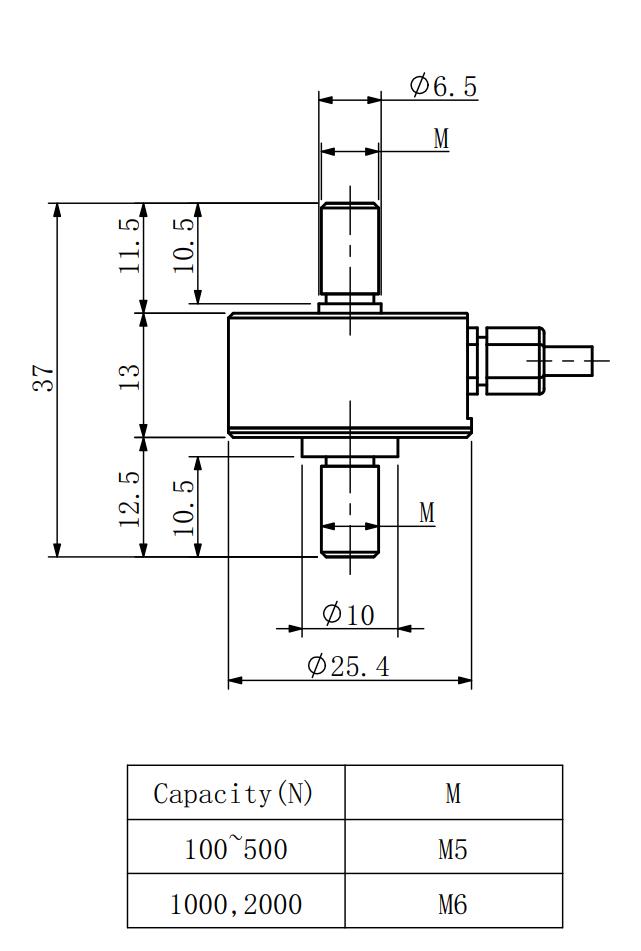

Mounting Dimension

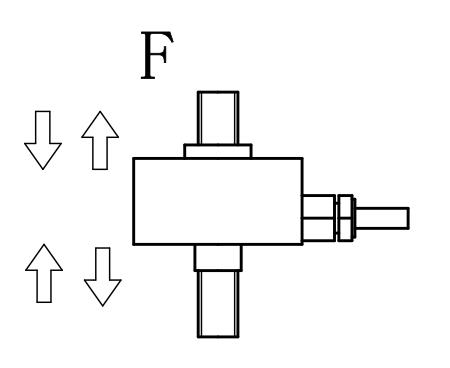

Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 50,100,200,300,500,1000,2000,5000N |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.1%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | φ3×3000mm |
