| Model: | NF201 |
| Category： | Tension/Compression Load Cells |
| Capacity: | 50,100,200,500,1000N |
| Rated Output: | 1.0±20%mV/V |
| Material: | Stainless steel |
| Protection Class: | IP65 |
| Weight: | 0.2KG |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

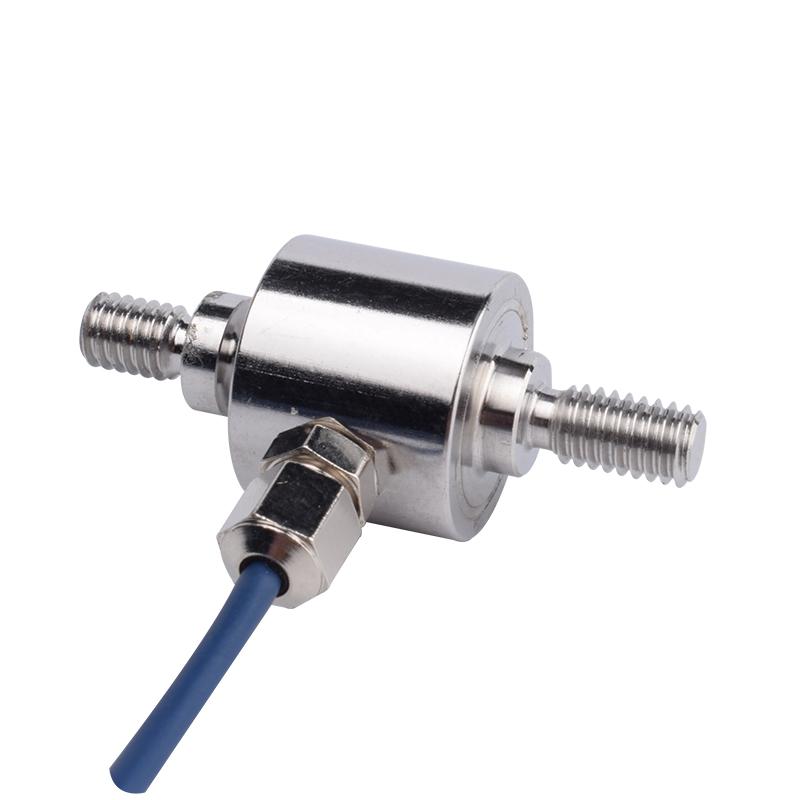

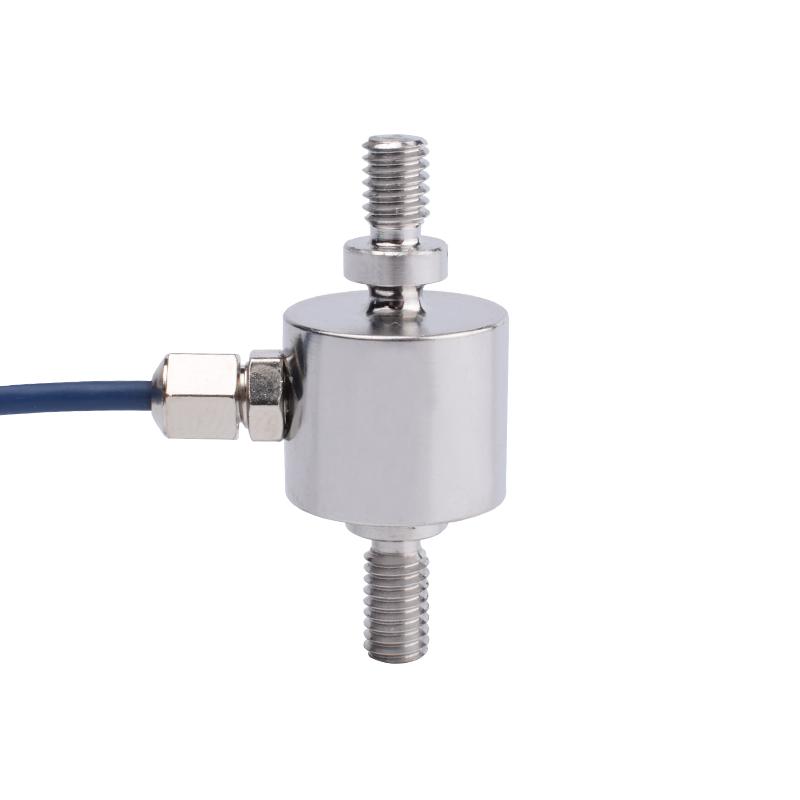

Miniature threaded tension compression load cell NF201 is a highly accurate load cell for tension and compression measurement. The tension and compression load cell can be easily mounted to existing system through M4 threaded rods located on both sides of the transducer.
Applications

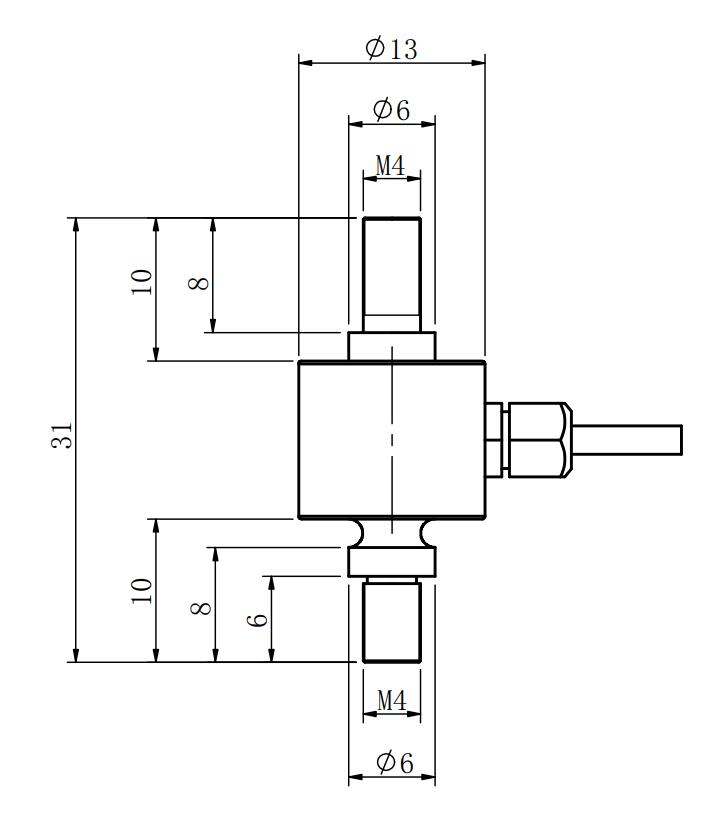

Mounting Dimension

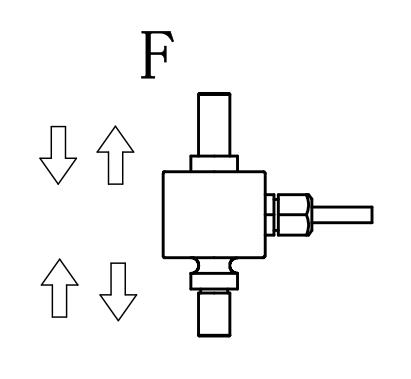

Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 50,100,200,500,1000N |
| Rated output | 1.0±20%mV/V |
| Zero balance | ±0.05 mV/V |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.5%F.S. |
| Repeatability | 0.5%F.S. |
| Temp.effect on output | 0.2%F.S./10℃ |
| Temp.effect on zero | 0.2%F.S./10℃ |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | φ2×3000mm |
