| Model: | NF05 |
| Category： | Load cell instruments |
| Comprehensive accuracy: | ＜0.01% |
| Accept Sensitivity: | -3.6~+3.6 mV/V |
| Material: | Aluminum ally |
| Protection Class: | ~ |
| Weight: | 0.5KG |
| Installation Dimensions: | As shown in the mounting dimension below |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

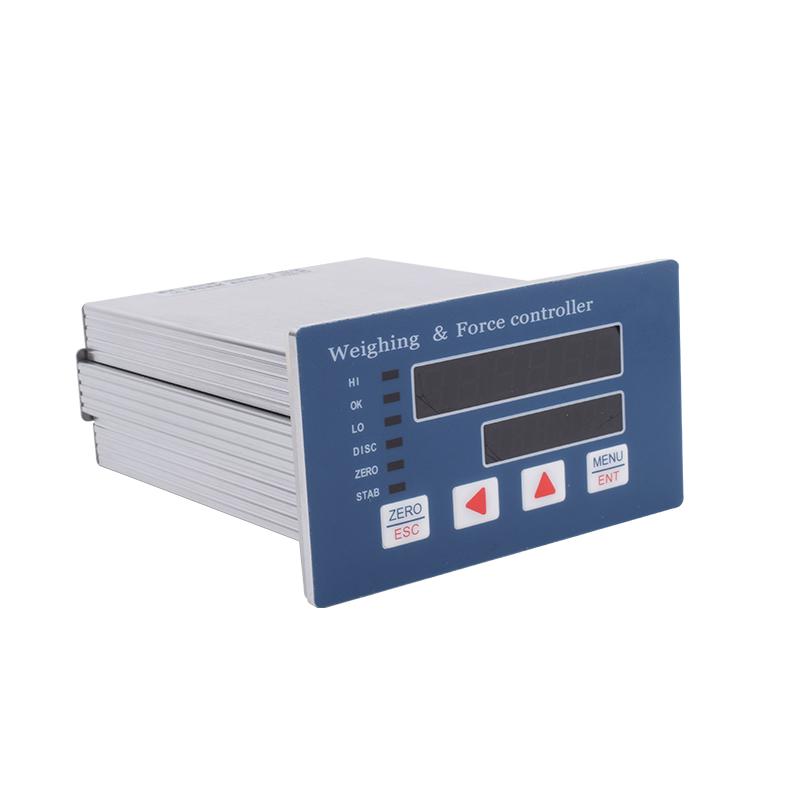

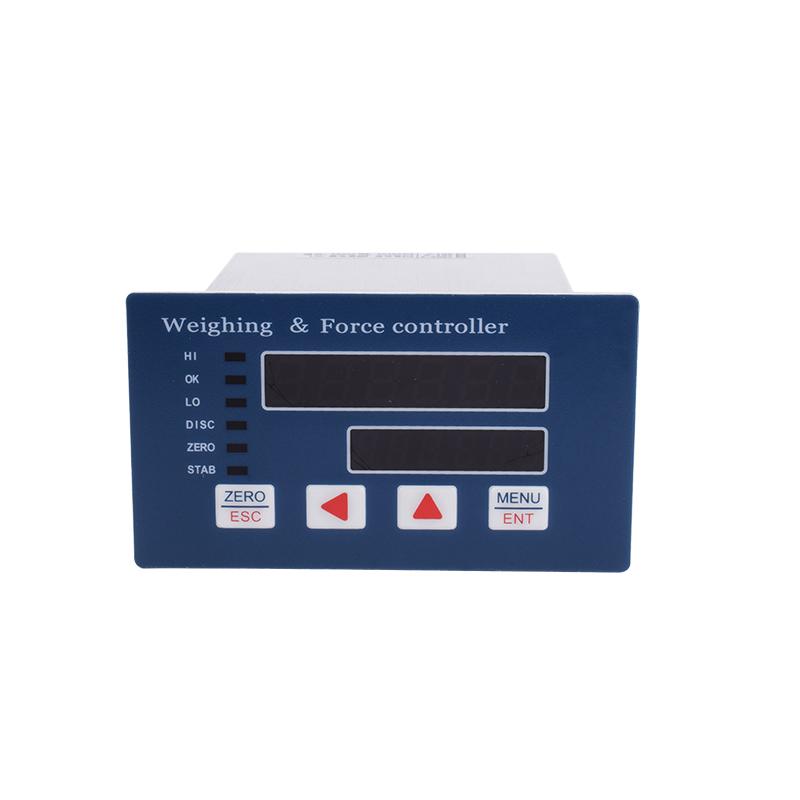

Industrial control instrument for load cell NF05 converting force signal into digital communication signal or standard analog output signal can be easily integrated to work with load cells, multi-axis sensors and torque sensors on the market. The load cell instrument can display real-time measurement, peak value, output current value and I/O status information in a double row 6-bit LED display. The digital display for load cell can drive the output of the controller through the upper computer, which can partially replace PLC. The panel mount display using DC24±5V power supply is more safe and stable.

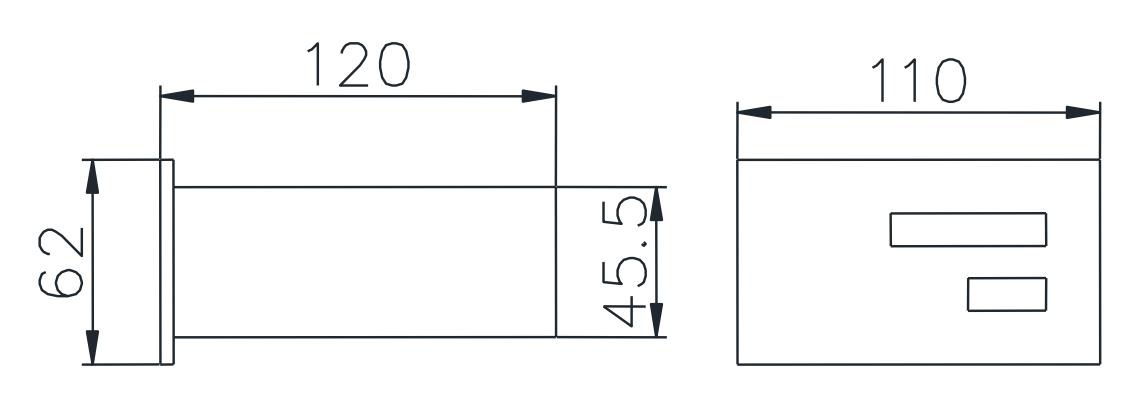

Mounting Dimension

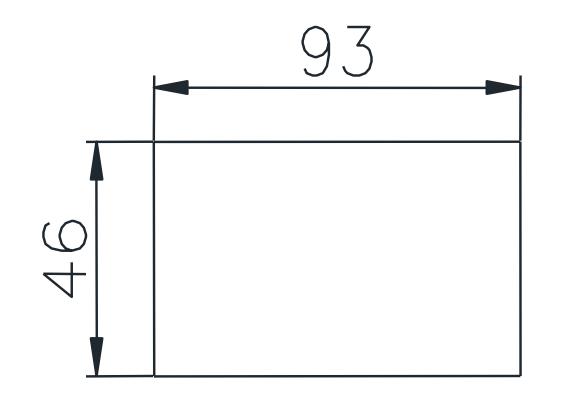

The Size of Mounting Hole
Specifications
| Specifications | Technique |
| Display | Double row 6-bit LED display |
| Readability | 1/90000 |
| Output linear | ＜0.002% |
| Comprehensive accuracy | ＜0.01% |
| A/D Conversion speed | ≤400 times per second |
| Accept sensitivity | -3.6~+3.6 mV/V |
| Input load | 1-8 350Ωsensors |
| Output specification | ±10V / 0-10V / 4-20mA |
| Temp.effect on output | ≤10ppm /℃ |
| Temp.effect on zero | ≤10μV /℃ |
| Excitation voltage | 5VDC |
| Power supply | 24±5VDC |
| Power waste | ≤10W |
| Operation temp range | -20-70℃ |
| Weight approx. | 0.5kg |
| Material | Aluminum ally |
Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
