| Model: | NF06 |
| Category： | Load cell instruments |
| Comprehensive accuracy: | ＜0.01% |
| Accept Sensitivityt: | -3.6~+3.6 mV/V |
| Weight: | 1KG |
| Product Orgin: | China |
| Payment: | 100% payment before shipment |
Features

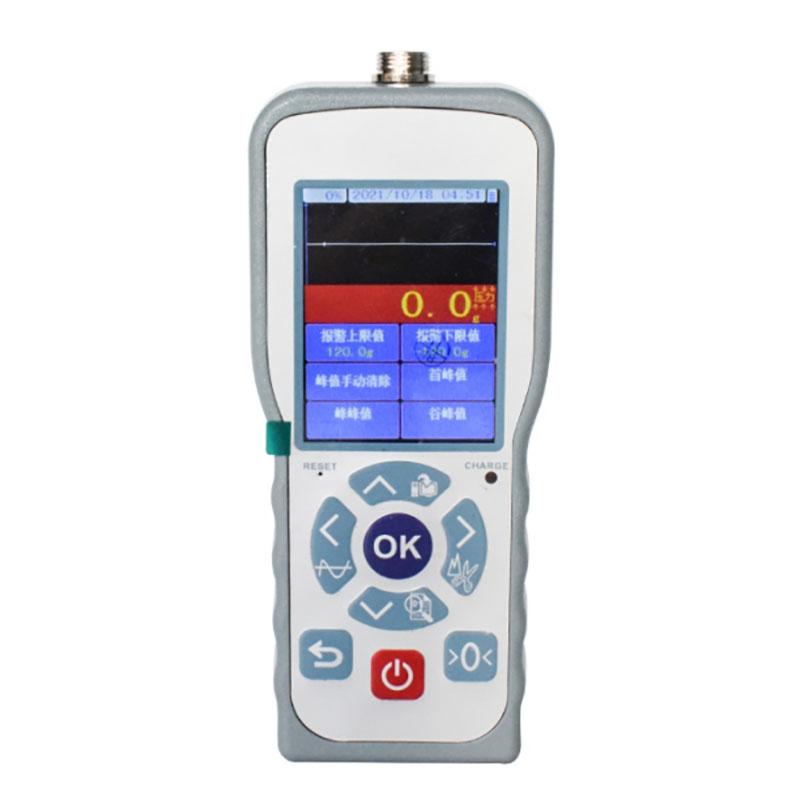

1. 2.8-inch TFT true color display; directional buttons.
2. Built-in real-time clock, can display real-time time and date; USB data interface, support hot-swap.
3. Peak value, real-time value, and the test process curve displayed on the same screen, can monitor and trace the whole process of testing.
4. Fracture alarm value, fracture alarm dead zone / upper and lower limits of the deviation value is freely set; fracture / limit / limit alarm arbitrary choice; reach the alarm value, the buzzer, the display at the same time prompts the alarm, the standard configuration of two open collector level outputs, you can directly drive the DC 12V relay or solenoid valve and other actuators, each drive current 50mA, the use of the output port, please connect the power adapter to use.
5. Three kinds of units N, kg, lb automatic conversion, and can be automatically converted to strength unit Mpa.
6. With peak hold function, peak automatic lifting and lifting time can be set.
7. Can permanently save 100 groups of test reports, test report content has test time, peak, valley average, etc., but also save a group of curves, trace the whole process of testing.
8. Through the input material cross-sectional area test material strength.
9. Can be arbitrarily set no operation automatic shutdown, automatic backlight and other power-saving features.
10. Chinese / English switching; built-in graphic instructions, a variety of operations intuitively clear.
11. Through the PC supporting the special test software, unlimited storage, transmission, traceability test curve data.
12. Can be equipped with various types of testing machines, to achieve a variety of tests.

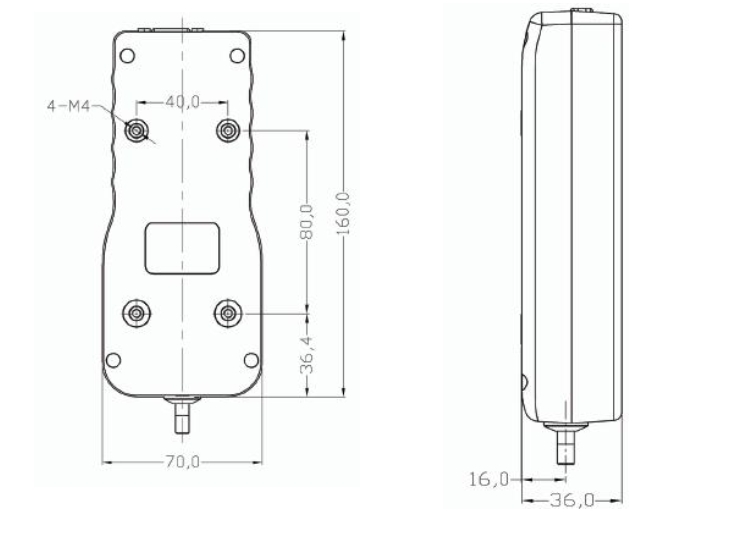

Dimension
Specifications
| Specifications | Technique |
| Display | 2.8-inch TFT true color/LCD backlighting |
| Readability | 1/90000 |
| Output linear | ＜0.002% |
| Comprehensive accuracy | ＜0.01% |
| A/D Conversion speed | ≤1600times/second |
| Accept Sensitivity | -3.6~+3.6 mV/V |
| Input load | 1-4 350Ωsensors |
| Temp.effect on output | ≤10ppm /℃ |
| Temp.effect on zero | ≤10μV /℃ |
| Excitation voltage | 5VDC |
| Power supply | 24±5VDC |
| Power waste | ≤10W |
| Weight approx. | 1kg |
Naturoll is a high-tech enterprise engaged in the technology development and sales of sensors, mainly providing force sensors, transmitters, control instruments and other products. Naturoll specializes in custom design and development of load cells and solutions. We can provide perfect force sensors and system solutions according to customer's situation.
