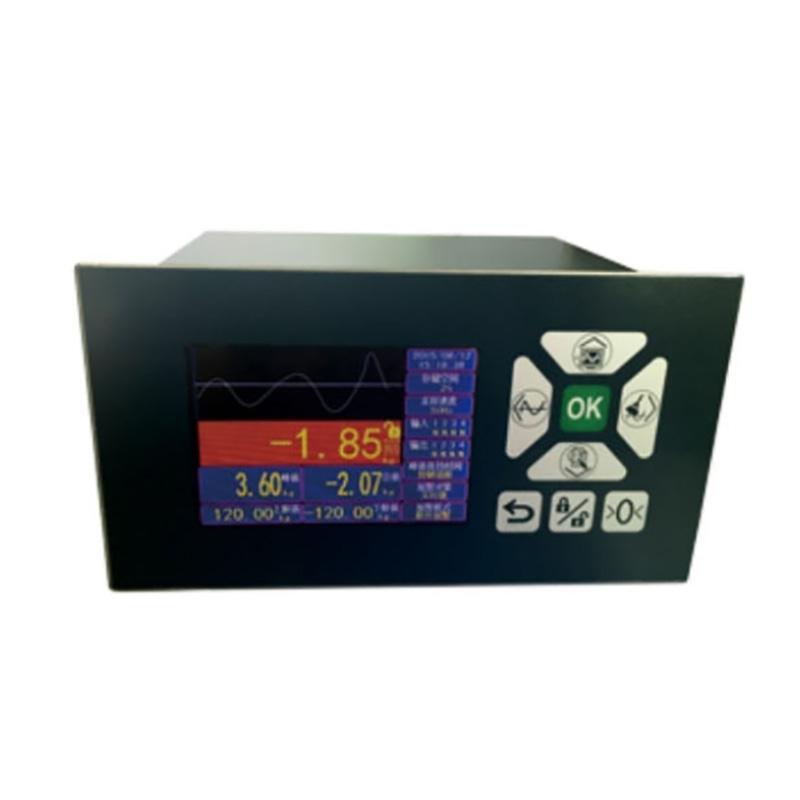

Digital display for load cells NF06B

Features

ü  65535 color TFT display screen in size 3.5 inches

ü  Real-time display of force value curve, curve capture

ü  Separated RS232 and RS485 communication interface

ü  Separated 4 external inputs, 4 open outputs of transistor emitter

ü  Mechanical touch button with locking function

ü  Modbus continuous output or Modbus RTU communication protocol

ü   4-20mA or 0-10V analog quantity output interface

ü  Built-in real-time clock, able to display real time and date

ü  Peak value, real-time value and test curve displayed on the same screen; whole process of test can be monitored and traced

ü  Free setting of fracture alarm value, fracture alarm dead zone / upper and lower limit

ü  Random choice of alarm in limit, alarm out of limit and fracture alarm

ü  After reaching alarm value, buzzer, display screen and external output give alarm at the same time

ü  Free choice of three groups of unit: g(mN/mlb/pa), kg(N/lb/kpa) and t(KN/Klb/Mpa)

ü  Peak value maintenance function; automatic relief of peak value and time of relief can be set

ü  100 test reports can be saved permanently; contents of report include test time, peak value, valley value, mean value etc.

ü  The last curve captured can be saved without power outage; the whole test process can be traced

ü  Strength of material can be tested by inputting sectional area of material

ü  Built-in illustrations; visual and clear operations

ü  Special test software installed in PC can save, transmit and trace the data of test curve without limit

ü  Test machines in varieties can be chosen to realize various tests

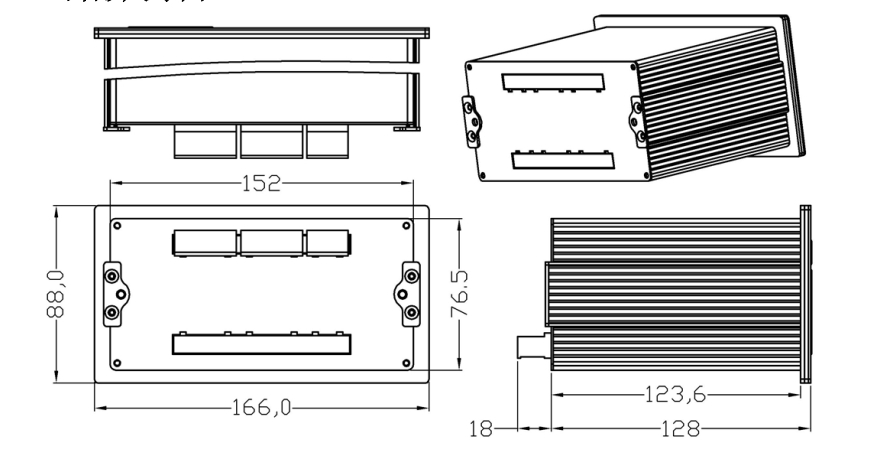

Dimension
